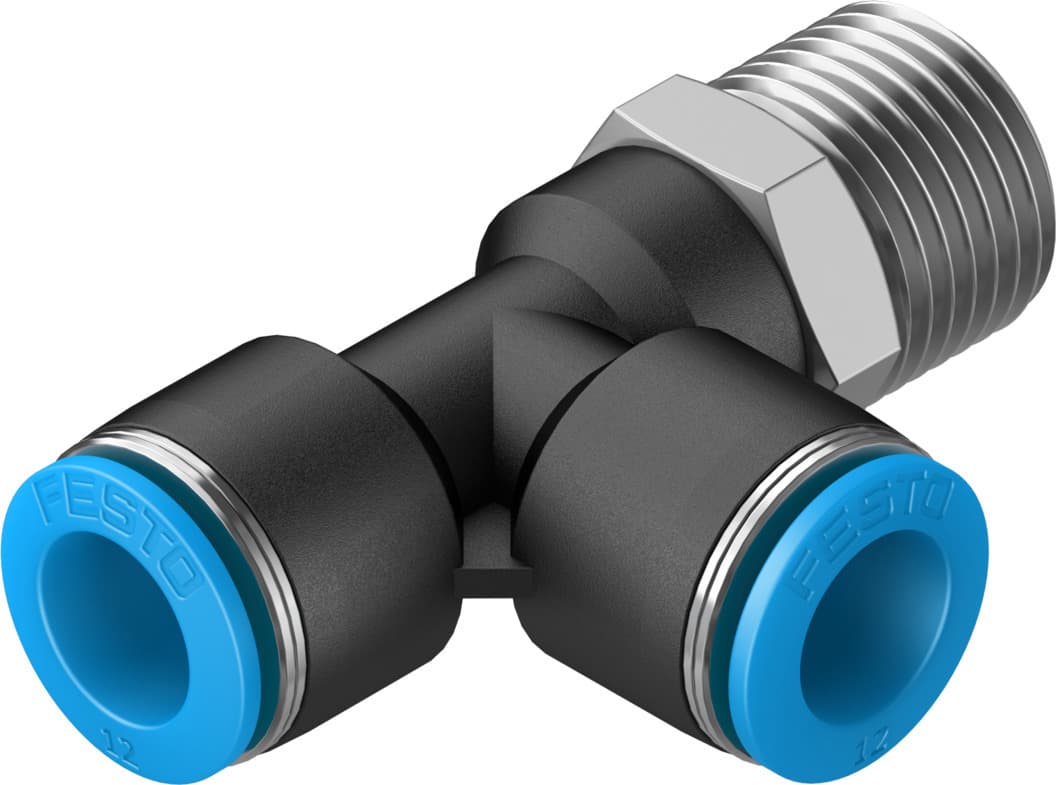

Product Model
qstl-1/2-12
Selling Points
- 1The Festo QSTL-1/2-12 push-in T-fitting offers a versatile 360° orientable design, allowing for easy installation in any position.
- 2With a corrosion resistance classification of CRC 1, this fitting ensures long-lasting performance in demanding environments.
- 3Designed for use with compressed air according to ISO 8573-1:2010, ensuring reliable operation in various pneumatic applications.
- 4The QSTL-1/2-12 supports lubricated operation, enhancing its durability and performance in high-pressure applications.
- 5Weighing only 72 grams, this fitting is compact and lightweight, making it easy to handle and integrate into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, additional push-in connector, lengthwise | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 72g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 21 |
Pneumatic connection 1 | External thread R1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153126 |
Specifications may be subject to change without notice
