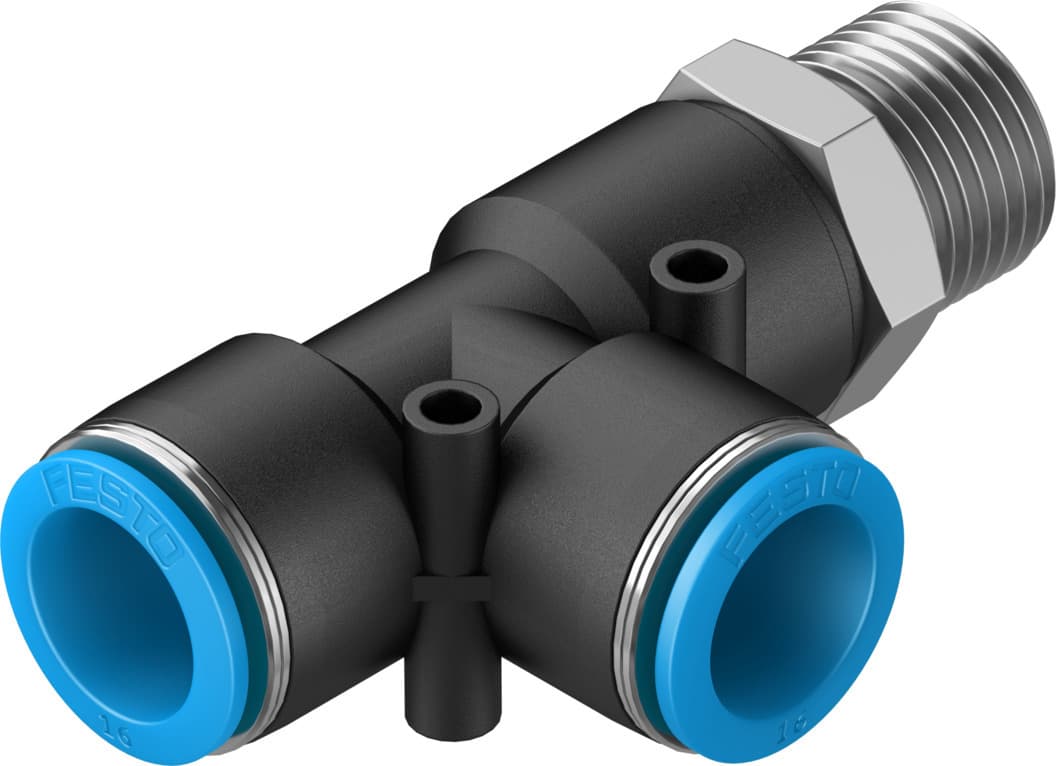

Festo QSTL-1/2-16 Push-in T-Fitting - High-Quality Pneumatic Connector

Selling Points

1The QSTL-1/2-16 features a 360° orientable design, allowing for flexible installation and easy connection.
2With a standard nominal size of 13 mm, this fitting is compatible with a wide range of pneumatic systems.
3Equipped with a coating seal on the screw-in stud, ensuring a secure and leak-free connection.
4Suitable for operating pressures from -0.95 to 6 bar, making it versatile for various applications.
5Classified as CRC 1 – Low corrosion stress, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	13mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	L-shape, additional push-in connector, lengthwise	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Nominal tightening torque	26Nm	Tolerance for nominal tightening torque	± 20%
Product weight	93g	No. of outlets	2
No. of supply lines	1	Type of mounting	External hexagon, AF 22
Pneumatic connection 1	External thread R1/2	Pneumatic connection 2	for pneumatic tubing outside diameter 16 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	153127

Specifications may be subject to change without notice
