Product Model
qstl-1/4-6-100
Selling Points

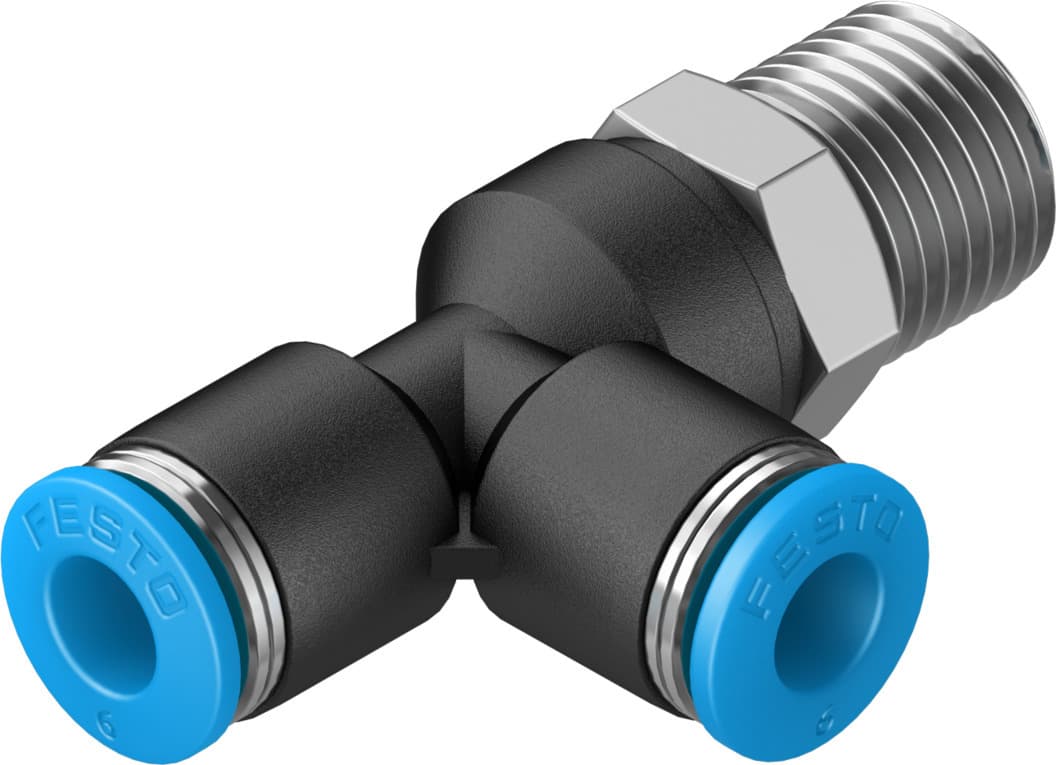

- 1The Festo QSTL-1/4-6-100 push-in T-fitting ensures secure and reliable pneumatic connections, ideal for various industrial applications.
- 2This T-fitting features a push-pull principle, allowing for 360° orientation and easy installation in any position, making it versatile for different setup requirements.
- 3Constructed from nickel-plated brass for the threaded portion and PBT for the housing, this fitting is RoHS-compliant and resistant to corrosion, ensuring durability and longevity.
- 4The QSTL-1/4-6-100 supports operating pressures from -0.95 to 6 bar and temperatures from -10°C to 80°C, making it suitable for a wide range of pneumatic systems.
- 5Lubricated operation is possible, and the fitting is designed for easy maintenance, reducing downtime and increasing overall efficiency in your pneumatic setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, additional push-in connector, lengthwise | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 22g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 14 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130827 |
Specifications may be subject to change without notice
