Product Model
qstl-1/8-8-50
Selling Points

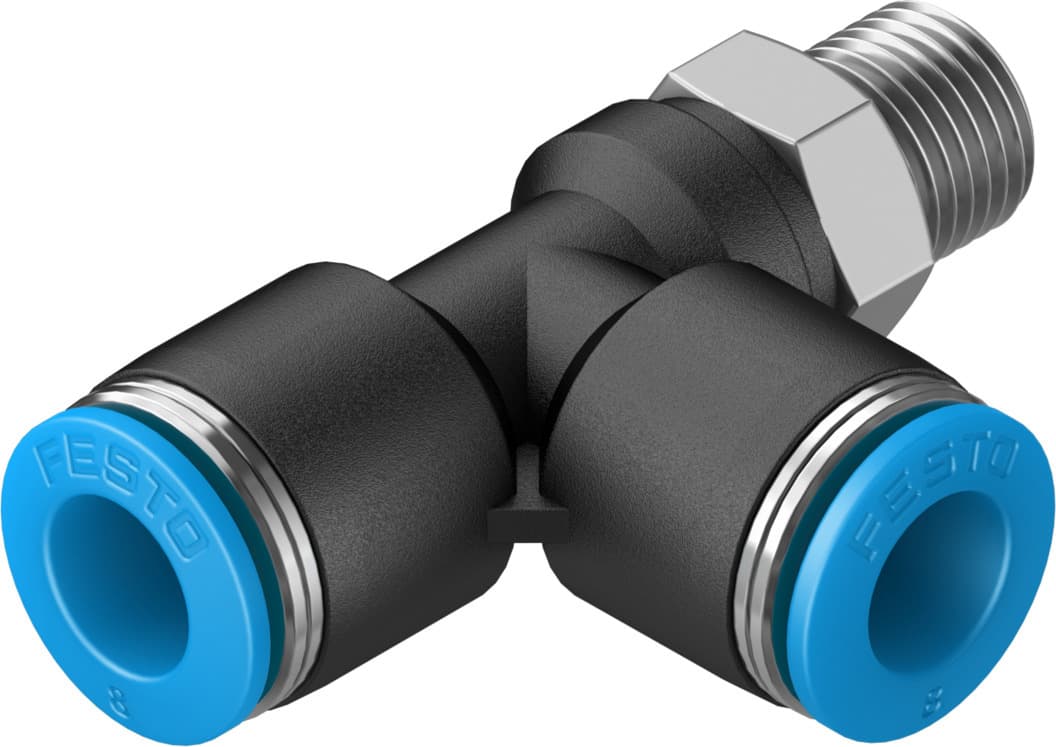

- 1The Festo QSTL-1/8-8-50 push-in T-fitting is designed with a standard nominal size of 6 mm, ensuring compatibility with a wide range of pneumatic systems.
- 2This T-fitting features a push-pull principle, making it easy to install and remove without the need for tools, enhancing operational efficiency.
- 3The QSTL-1/8-8-50 is constructed from high-quality materials, including PBT for the housing and POM for the release ring, ensuring durability and resistance to corrosion.
- 4With a corrosion resistance class of CRC 1, this fitting is suitable for applications where low corrosion stress is a concern, such as in cleanroom environments.
- 5The QSTL-1/8-8-50 operates within a temperature range of -10 °C to 80 °C and supports compressed air to ISO 8573-1:2010, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, additional push-in connector, lengthwise | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 19g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 12 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130826 |
Specifications may be subject to change without notice
