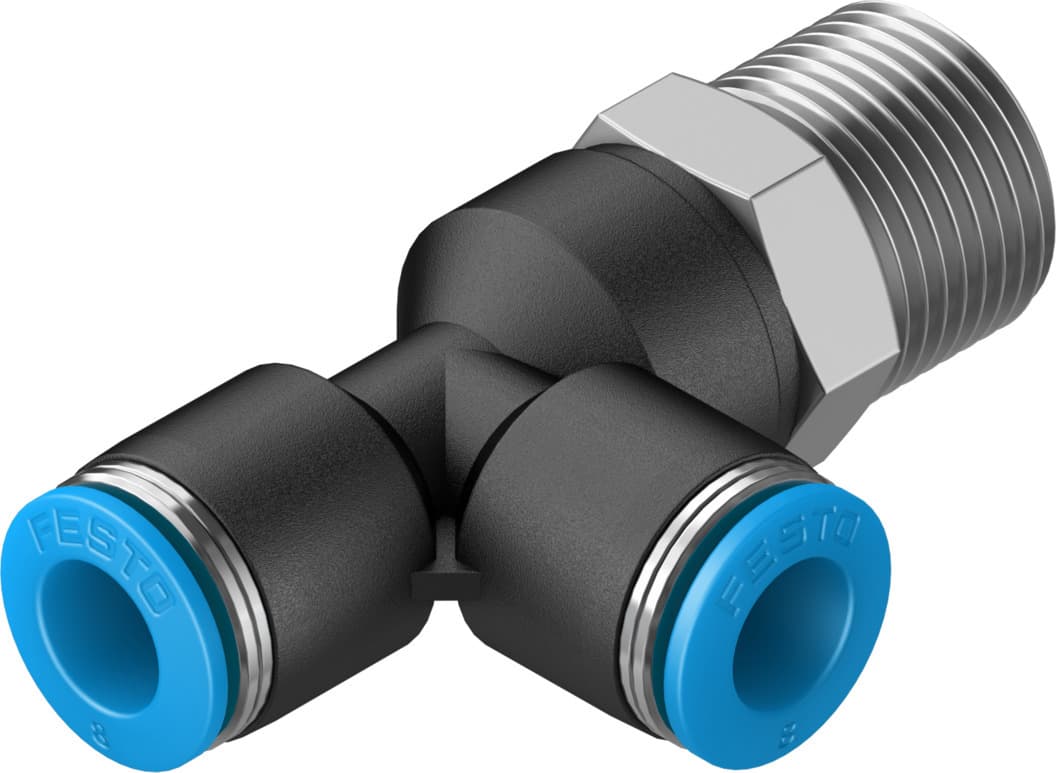

Product Model
qstl-3/8-8
Selling Points
- 1The Festo QSTL-3/8-8 features a 360° orientable male thread with an external hexagon, allowing for versatile installation in various pneumatic systems.
- 2Built with high-quality materials, including PBT for the housing and POM for the release ring, ensuring durability and resistance to corrosion.
- 3Designed for push/pull principle, this fitting facilitates robust and efficient connections in industrial applications, ensuring stable system pressure.
- 4Compatible with compressed air in accordance with ISO8573-1:2010, operating within a temperature range of -10°C to 60°C and up to 10 bar pressure.
- 5Supports lubricated operation, enhancing the performance and longevity of the fitting in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, additional push-in connector, lengthwise | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 35g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153122 |
Specifications may be subject to change without notice
