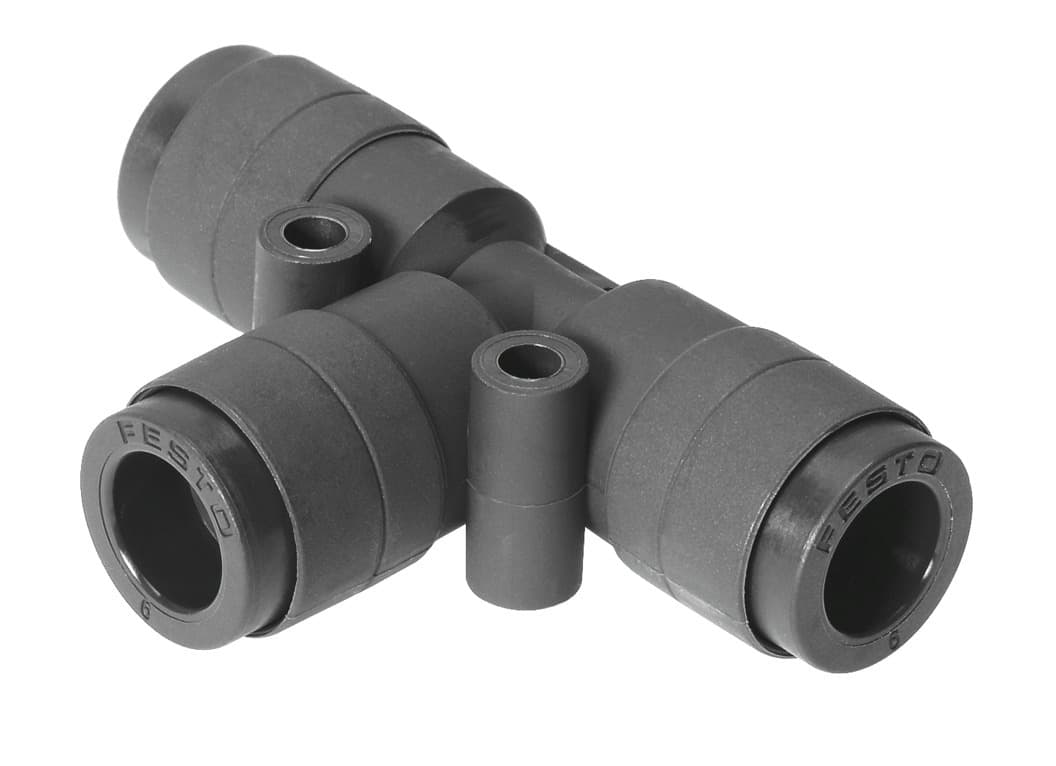

Festo QST-V0-10 Push-in T-Connector - Efficient Pneumatic Connection

Selling Points

1The Festo QST-V0-10 features a push-in design for easy and secure connections between pneumatic tubes, ensuring reliable operation in various applications.
2Constructed with UL94 V-0 rated PBT-reinforced housing and releasing ring, this connector meets stringent fire safety standards and is RoHS compliant.
3Compatible with compressed air and water (liquid, ice-free), the QST-V0-10 operates within a wide temperature range of 0°C to 60°C and supports pressures up to 10 bar.
4With a corrosion resistance class of CRC 2, this connector can withstand moderate corrosion stress, making it suitable for various industrial environments.
5The push-pull principle allows for simple and quick installation without the need for tools, reducing downtime and increasing efficiency in your pneumatic system.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	8.1mm
Material fire test	UL94 V-0 (housing) UL94 V-0 (releasing ring)	Design	T-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 145psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	0°C 60°C	Product weight	27g
Pneumatic connection 1	for pneumatic tubing outside diameter 10 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 10 mm
Releasing ring color	Black	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	PBT
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel Brass
Manufacturer ID	160535

Specifications may be subject to change without notice
