Product Model
qst-v0-3/8-10
Selling Points

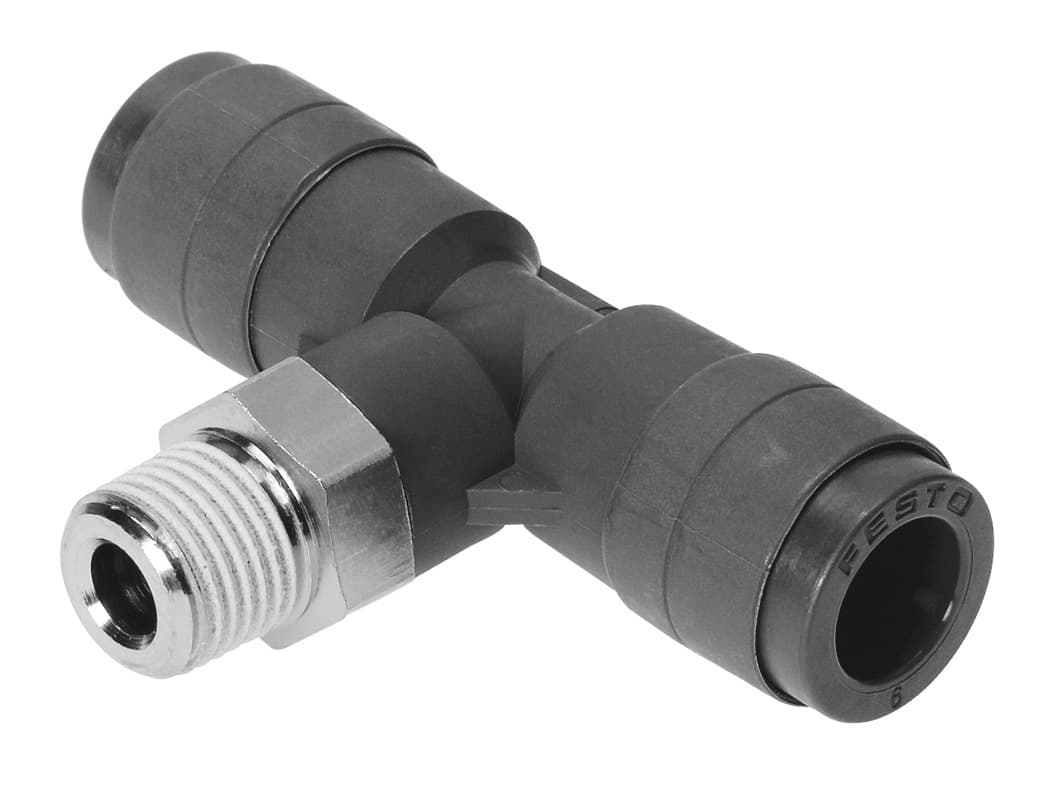

- 1The Festo QST-V0-3/8-10 push-in T-fitting features a standard size of 8.3 mm nominal width, ensuring compatibility with various pneumatic systems. Its T-shape design enhances ease of installation and operation.
- 2The fitting is made from UL94 V-0 (housing) and UL94 V-0 (releasing ring) materials, providing excellent fire resistance and safety in high-temperature environments.
- 3This T-fitting supports operating pressures from -0.095 MPa to 1 MPa, covering a wide range of pneumatic applications. It can handle both compressed air and water as operating media.
- 4With a corrosion resistance class of 2 (moderate corrosion stress), the QST-V0-3/8-10 is designed to withstand various industrial conditions. It also meets VDMA24364-B1/B2-L LABS (PWIS) conformity standards.
- 5The push-pull principle design makes installation and maintenance straightforward. The fitting includes a PTFE pre-coated thread for enhanced sealing and durability, ensuring reliable performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.3mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Coating |
Design | T-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 44g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | PBT | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel Brass | Manufacturer ID | 160529 |
Specifications may be subject to change without notice
