Product Model
qs-v0-1/8-4
Selling Points

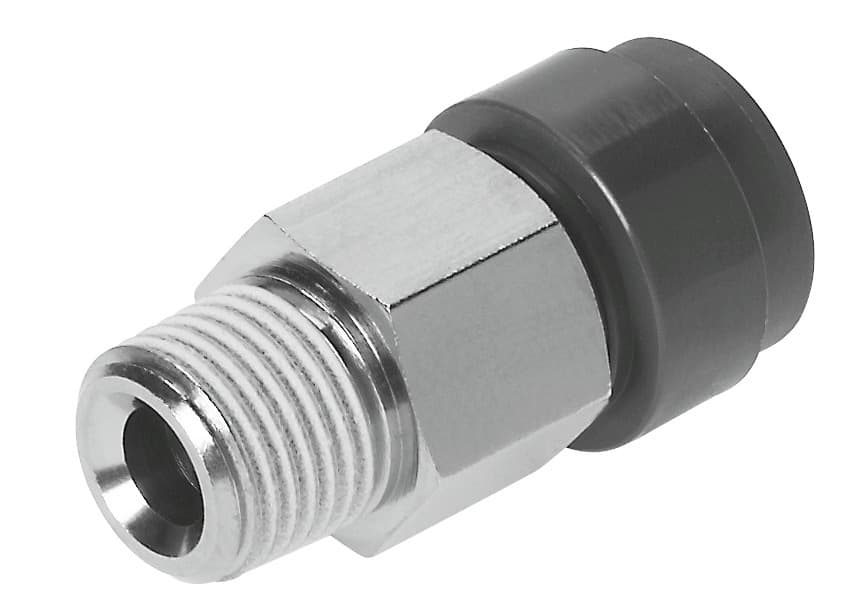

- 1The Festo QS-V0-1/8-4 push-in fitting is designed with a standard nominal size of 3 mm, ensuring compatibility with various pneumatic systems. Its robust construction and UL94 V-0 fire test rating make it suitable for demanding applications.
- 2This push-in fitting features a coating seal on the screw-in stud, providing a reliable and secure connection. The push/pull principle design ensures easy installation and operation, reducing the risk of leaks and improving overall system efficiency.
- 3The QS-V0-1/8-4 is engineered to operate within a wide temperature range of 0 to 60°C and can handle pressures up to 10 bar. It is also resistant to moderate corrosion stress, making it suitable for various industrial environments.
- 4The push-in fitting is designed for use with compressed air in accordance with ISO8573-1:2010 and can also operate with water, as per manufacturer's declaration. This versatility makes it an ideal choice for diverse pneumatic applications.
- 5The Festo QS-V0-1/8-4 push-in fitting is made from high-quality materials, including PBT-reinforced housing and nickel-plated brass threaded plug. It conforms to RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Coating |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 7.9g | Type of mounting | External hexagon, AF 10 |
Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | PBT | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel Brass | Manufacturer ID | 132888 |
Specifications may be subject to change without notice
