Product Model
qs-v0-6
Selling Points

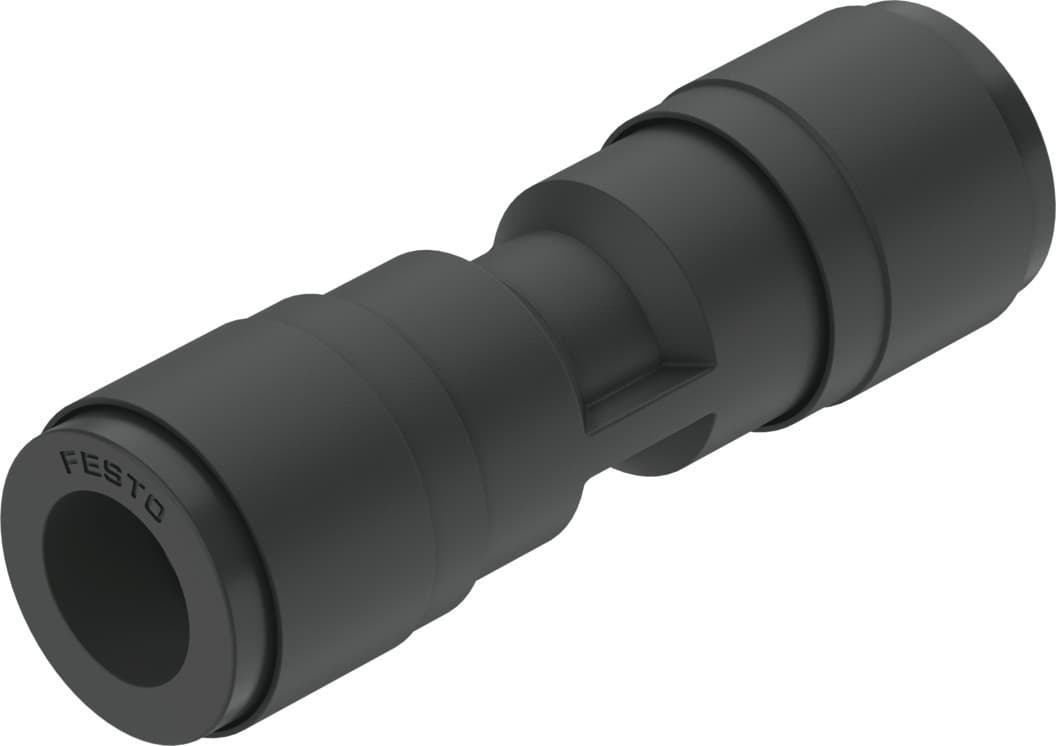

- 1The Festo QS-V0-6 push-in connector is made from PBT-reinforced material, ensuring a robust design that withstands demanding industrial environments.
- 2This fitting is designed for operating pressures ranging from -0.95 to 10 bar and can handle temperatures between -10°C and 60°C, making it suitable for various pneumatic applications.
- 3Featuring a push-pull principle, the QS-V0-6 connector allows for easy and secure hose connections, reducing installation time and effort.
- 4The fitting is corrosion-resistant, with a fire test material of UL94 V-0, ensuring it meets maritime classification standards and can operate in corrosive environments.
- 5The Festo QS-V0-6 push-in connector is RoHS compliant and meets the requirements of ISO 8573-1:2010 for compressed air, making it a reliable choice for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Product weight | 7.8g |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Black | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | PBT |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
Manufacturer ID | 160546 |
Specifications may be subject to change without notice
