Product Model
qs-v0-8
Selling Points

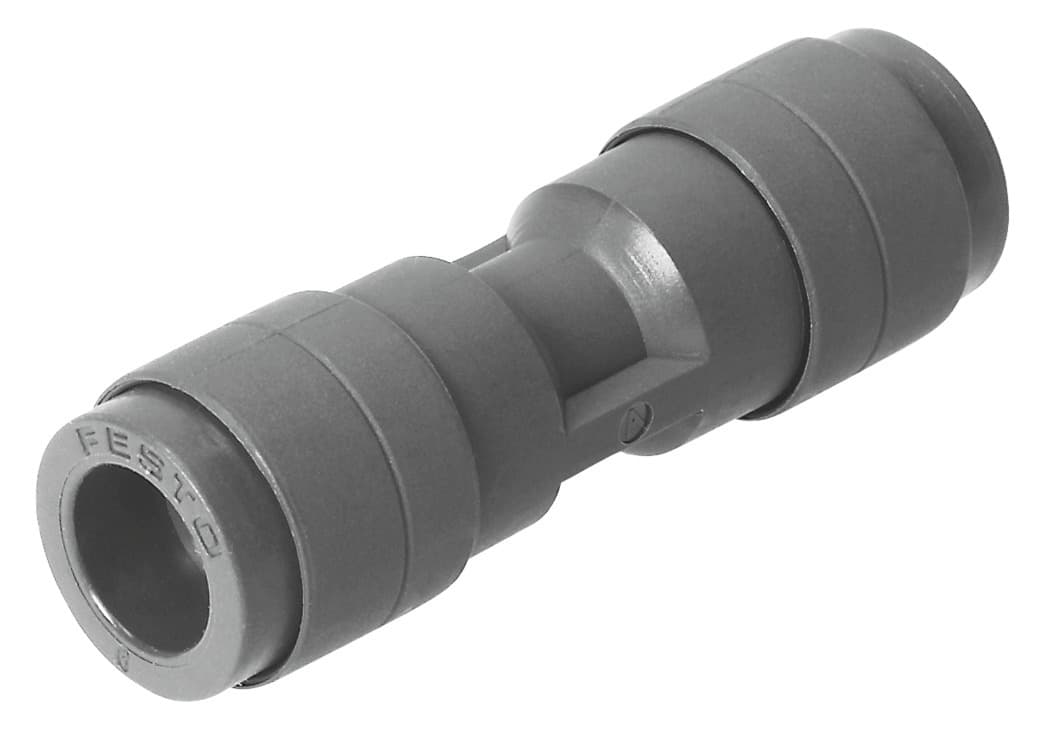

- 1The Festo QS-V0-8 push-in connector is designed for easy and secure connections, featuring a push-pull principle that ensures reliable pneumatic connections with a nominal size of 7 mm.
- 2This connector is compatible with tubing outer diameters of 8 mm and supports operating pressures up to 10 bar, making it suitable for various pneumatic applications.
- 3The QS-V0-8 is constructed with high-quality materials, including PBT for the housing and release ring, and NBR for the tubing seal, ensuring durability and resistance to corrosion.
- 4The connector operates within a temperature range of 0°C to 60°C and is compatible with both compressed air and water, making it versatile for different industrial needs.
- 5The Festo QS-V0-8 push-in connector is RoHS-compliant and meets stringent safety standards, including UL94 V-0 for the housing and release ring, ensuring safety in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Product weight | 11g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Black | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | PBT |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
Manufacturer ID | 160547 |
Specifications may be subject to change without notice
