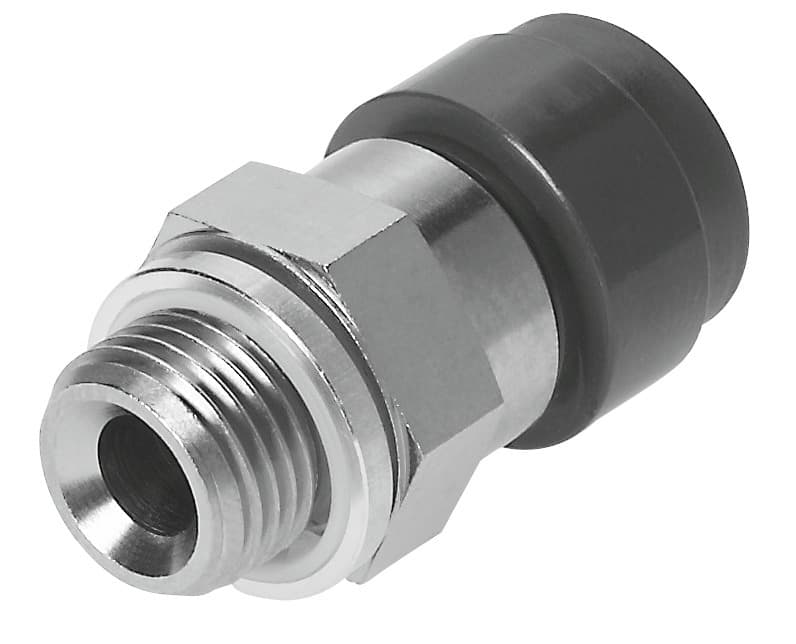

Product Model
qs-v0-g1/4-10
Selling Points
- 1High-Quality Material: The QS-V0-G1/4-10 is made from UL94 V-0 rated materials, ensuring high fire resistance and safety in industrial environments.
- 2Easy Installation: Featuring a push/pull principle, this fitting is easy to install and requires minimal effort, making it ideal for quick connections.
- 3Compressed Air Compatibility: Designed for use with compressed air in accordance with ISO8573-1:2010, this fitting ensures reliable performance in various pneumatic applications.
- 4Corrosion Resistance: With a corrosion resistance classification of CRC 2, this fitting can withstand moderate corrosion stress, extending its lifespan in harsh environments.
- 5Versatile Operating Range: Operating pressure ranges from -0.95 to 10 bar, and ambient temperature from 0 to 60°C, making it suitable for a wide range of industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.5mm |
Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Sealing ring |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 22g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Material of threaded seal | Aluminum PBT | Releasing ring material | PBT |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel Brass |
Manufacturer ID | 186318 |
Specifications may be subject to change without notice
