Product Model
qsw-3/8-10
Selling Points

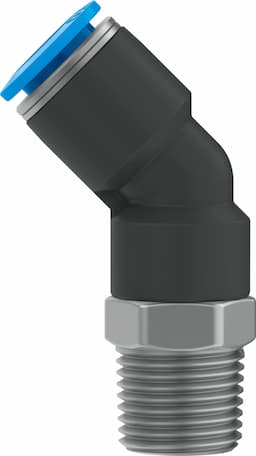

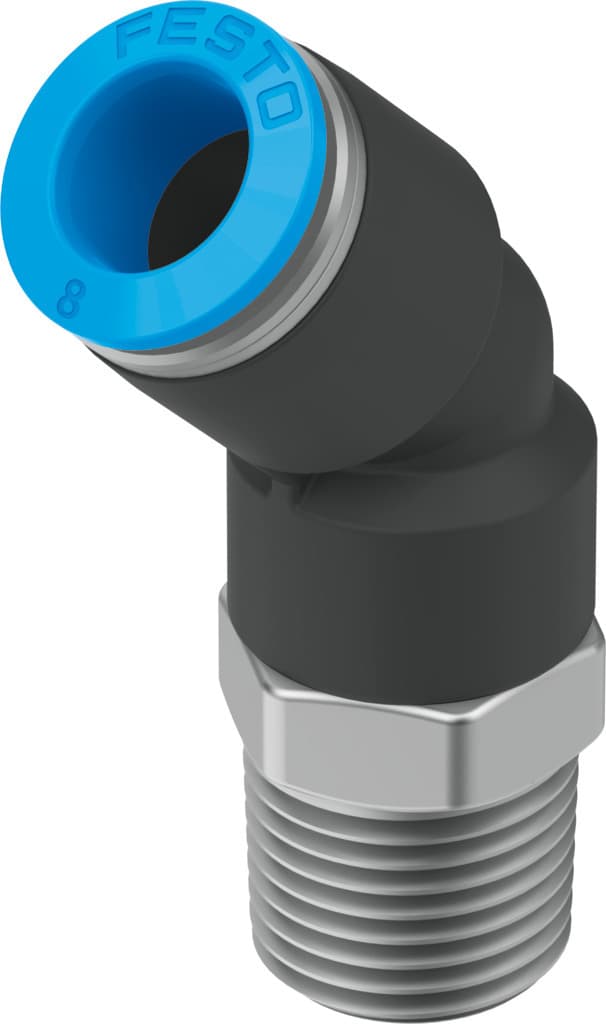

- 1The Festo QSW-3/8-10 push-in fitting is designed with a 45° angle push-pull principle, ensuring easy and secure connections. Its nominal size is 8.3 mm, making it suitable for various pneumatic applications.
- 2This fitting supports operating pressures up to 6 bar and temperature-dependent pressures up to 14 bar, making it versatile for different environments. It is also compatible with compressed air and water.
- 3The QSW-3/8-10 features a low corrosion resistance class (CRC 1) and is RoHS-compliant, ensuring it meets environmental and safety standards. It is also suitable for cleanroom applications (Class 4 according to ISO 14644-1).
- 4The fitting includes a nickel-plated brass screwed plug and a PBT housing, providing durability and resistance to corrosion. The release ring is colored blue for easy identification.
- 5The Festo QSW-3/8-10 push-in fitting is lightweight, weighing between 35 grams, and is available with a male thread R3/8 and a connection for tubing outside diameter of 10 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | 45° angle | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 35g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130602 |
Specifications may be subject to change without notice
