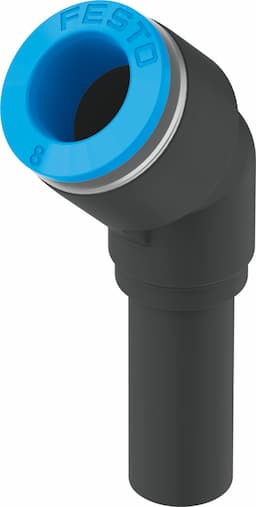

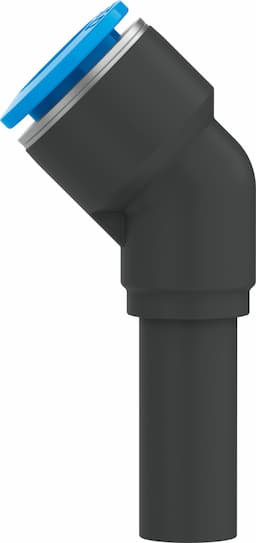

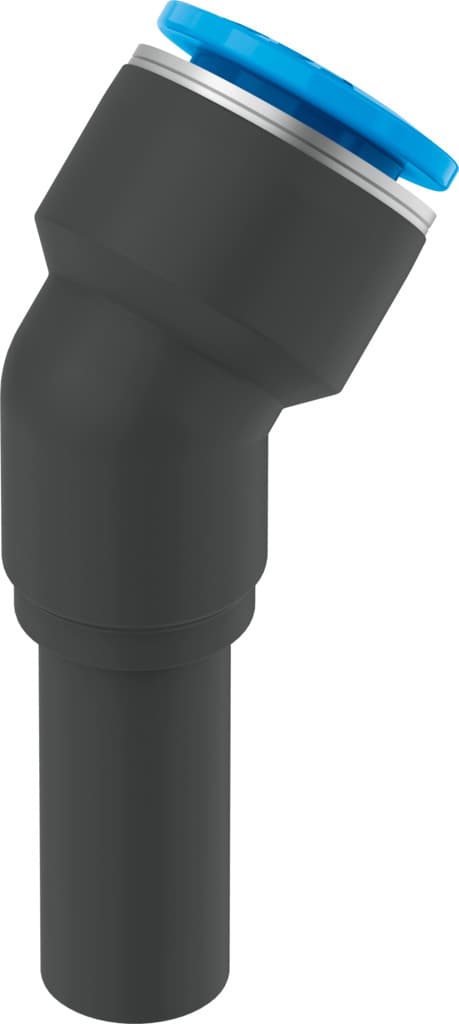

Product Model
qsw-4hl
Selling Points
- 1The Festo QSW-4HL push-in connector is designed with a standard size of 2 mm nominal diameter, ensuring precise and reliable connections in various assembly positions.
- 2This connector operates within a wide temperature range of -10°C to 80°C and supports operating pressures up to 6 bar for compressed air and 14 bar for temperature-dependent applications.
- 3The QSW-4HL features a push-pull principle design, making it easy to assemble and disassemble, and it is compatible with lubricated operations for enhanced performance.
- 4The connector is made from high-quality materials, including PBT for the housing and POM for the release ring, ensuring durability and corrosion resistance (CRC 1).
- 5The Festo QSW-4HL is suitable for use with compressed air in accordance with ISO8573-1:2010 and water as per manufacturer’s declaration, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2mm |
Mounting position | Any | Design | 45° angle, long |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 1.4g |
Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130617 |
Specifications may be subject to change without notice
