Product Model
qsx-10
Selling Points

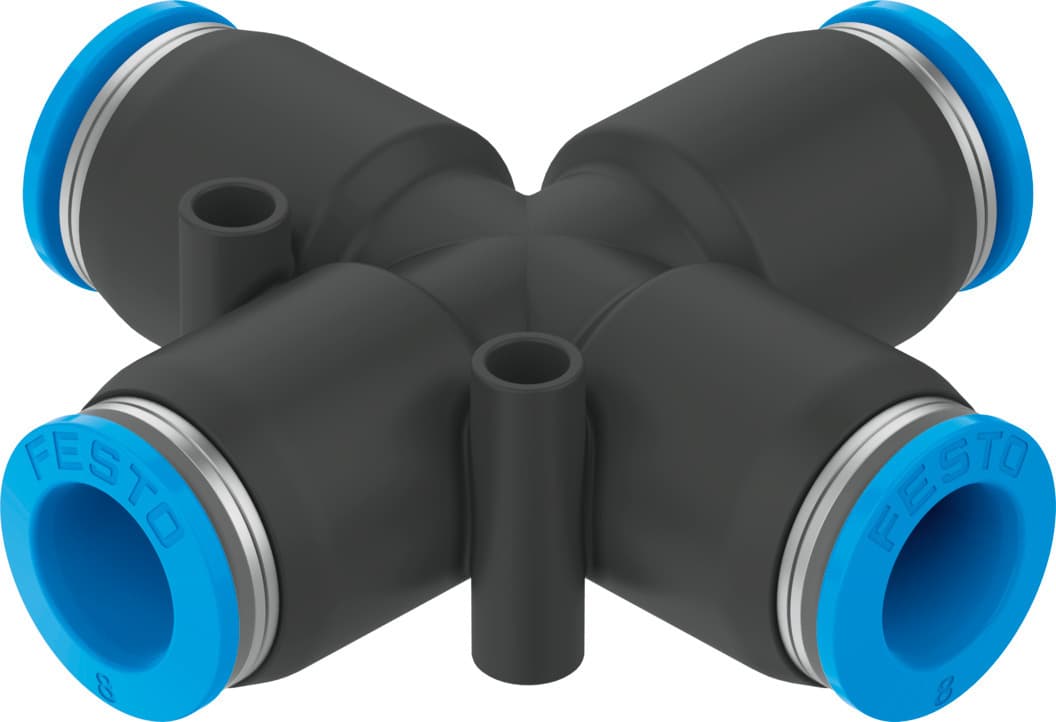

- 1The Festo QSX-10 push-in X connector is designed with a standard nominal size of 6.1 mm, ensuring a secure and precise connection for compressed air and water applications.
- 2This connector features a push-pull principle, allowing for easy assembly and disassembly without the need for tools, making it a convenient choice for various industrial settings.
- 3The QSX-10 has a low corrosion stress classification (CRC 1), making it suitable for use in environments with moderate exposure to moisture or other corrosive substances.
- 4The connector operates within a wide temperature range of -10°C to 80°C and supports both lubricated and non-lubricated operation, enhancing its versatility and reliability.
- 5The Festo QSX-10 is RoHS-compliant and meets cleanroom class 4 standards according to ISO 14644-1, ensuring it is both environmentally friendly and suitable for cleanroom applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.1mm |
Mounting position | Any | Design | X-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 32g |
No. of outlets | 3 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153286 |
