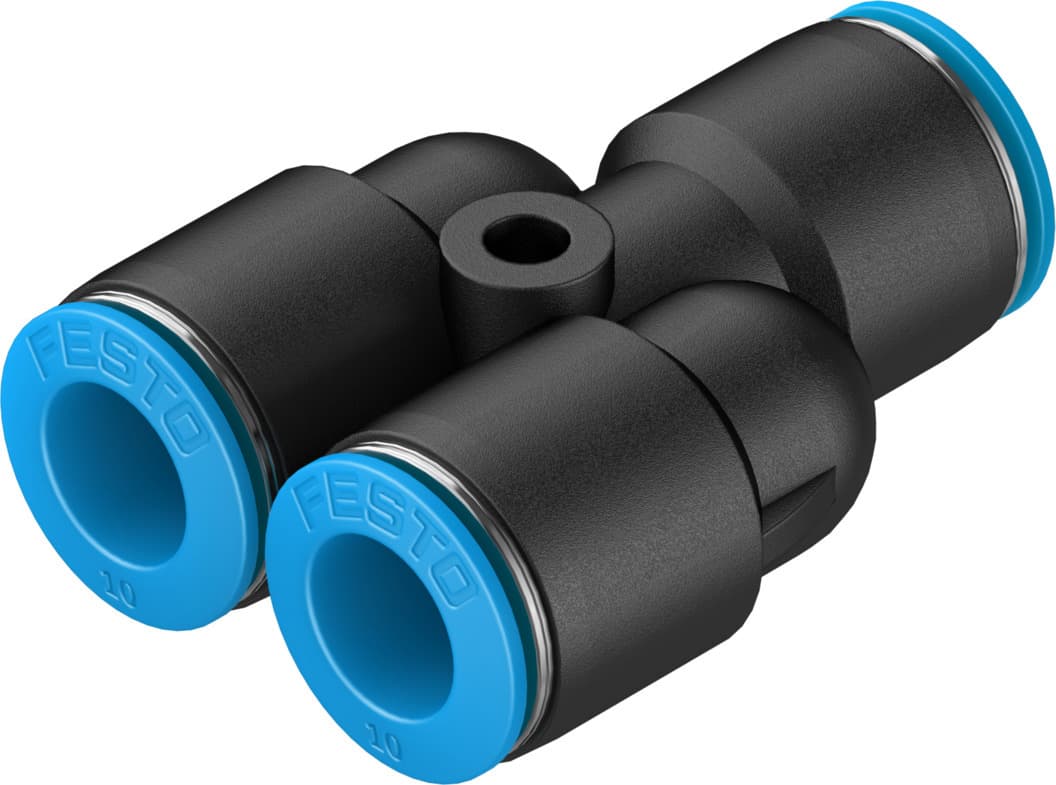

Festo QSY-10-20 Push-in Y-Connector: High-Quality Pneumatic Fitting

Selling Points

1The Festo QSY-10-20 push-in Y-connector ensures secure and reliable pneumatic connections with its push-pull principle design.
2This Y-connector operates within a wide temperature range of -10°C to 80°C and supports pressures from -0.95 bar to 6 bar, making it suitable for various applications.
3With a corrosion resistance class of CRC 1, the QSY-10-20 is designed to withstand low corrosion stress, ensuring durability in harsh environments.
4Featuring an optional mounting position, the QSY-10-20 can be easily integrated into your pneumatic system, offering flexibility in installation.
5The product is RoHS-compliant and meets ISO 8573-1:2010 standards for compressed air, ensuring it is safe and efficient in use.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6.7mm
Mounting position	Any	Design	Y-shape
Pack size	20	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	26g
No. of outlets	2	No. of supply lines	1
Pneumatic connection 1	for pneumatic tubing outside diameter 10 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 10 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130810

Specifications may be subject to change without notice
