Product Model
qsy-10-6
Selling Points

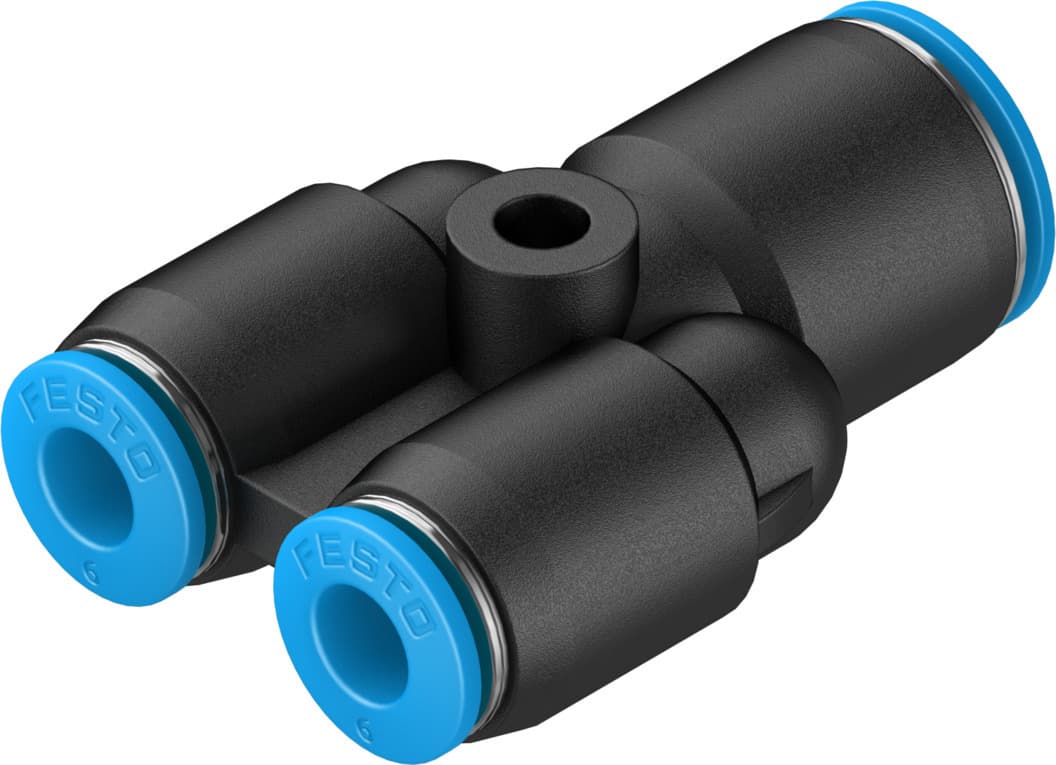

- 1The Festo QSY-10-6 push-in Y-connector is designed for use with compressed air and vacuum applications, making it an essential component for various pneumatic systems.
- 2This Y-connector features a push-pull principle, ensuring easy and secure connection and disconnection of pneumatic tubing.
- 3The QSY-10-6 is made from high-quality materials, including PBT for the housing, POM for the release ring, NBR for the tubing seal, and high-alloy stainless steel for the tube retaining claw.
- 4The product is RoHS-compliant and meets various international standards, including ISO 8573-1:2010 for compressed air and ISO 14644-1 for cleanroom applications.
- 5The QSY-10-6 operates within a wide temperature range of -10°C to 80°C and supports operating pressures up to 6 bar, making it suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.3mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 19g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130611 |
Specifications may be subject to change without notice
