Product Model
qsy-12-20
Selling Points

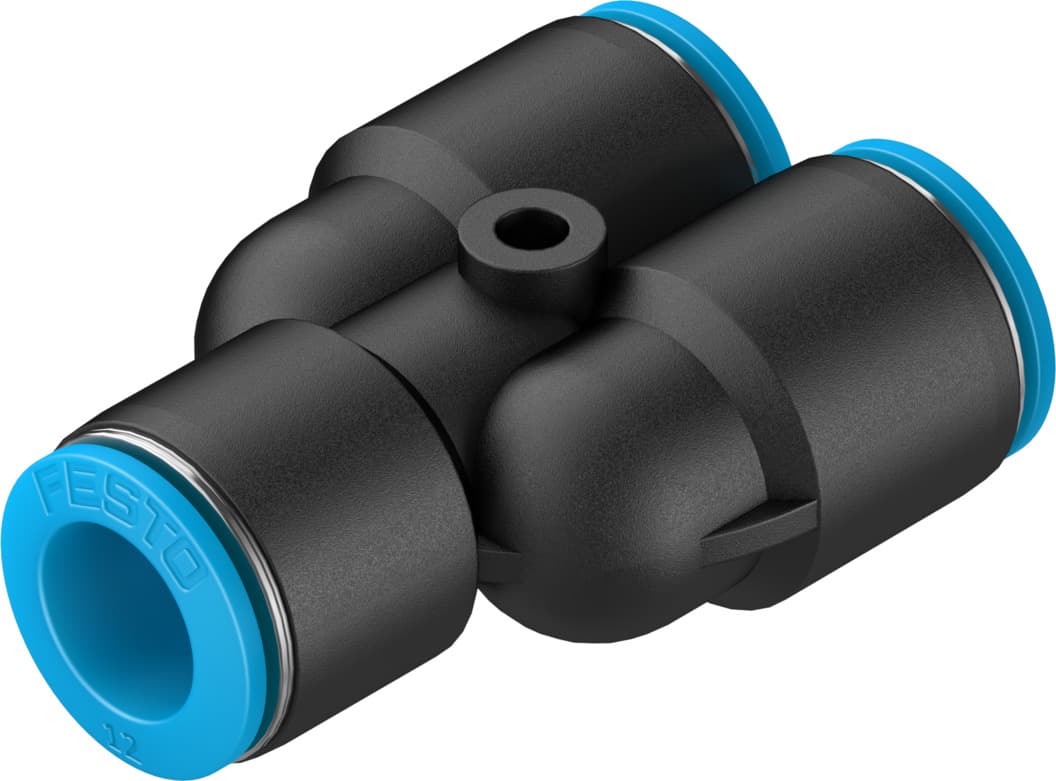

- 1Versatile Mounting Position: The Festo QSY-12-20 Push-in Y-Connector can be mounted in any position, making it highly adaptable for various pneumatic systems.
- 2Push-Pull Principle: This connector operates using a push-pull principle, ensuring easy and secure connection and disconnection.
- 3Compressed Air and Water Compatibility: Designed to work with compressed air as per ISO 8573-1:2010 and water, it is suitable for a wide range of applications.
- 4Low Corrosion Stress: With a corrosion resistance classification of CRC 1, this connector is designed to withstand low corrosion stress, ensuring durability.
- 5Reliable and Durable Construction: Made from high-quality materials like PBT and POM, the Festo QSY-12-20 Push-in Y-Connector is both reliable and durable, conforming to RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Mounting position | Any | Design | Y-shape |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 37g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130811 |
Specifications may be subject to change without notice
