Product Model

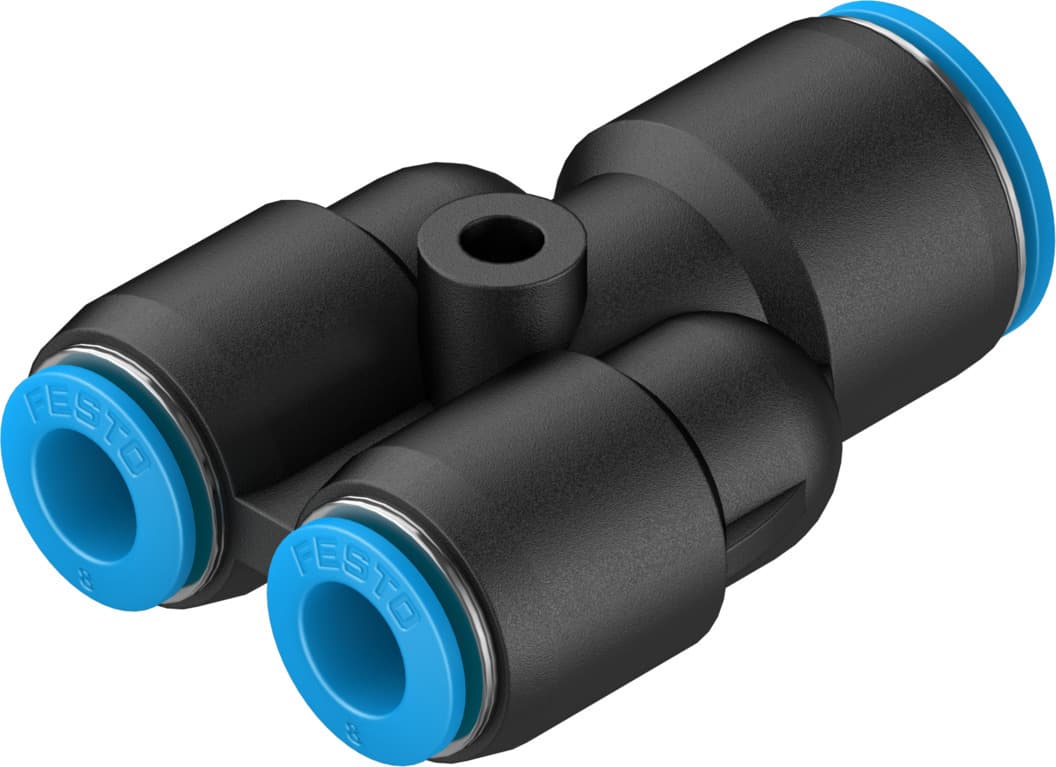

qsy-12-8
Selling Points
- 1The QSY-12-8 is made from high-quality materials, including PBT for the housing, POM for the release ring, and NBR for the tubing seal, ensuring durability and reliability.
- 2This push-in Y-connector features a Y-shape design with a push-pull principle, allowing for easy assembly and disassembly, making it suitable for various pneumatic applications.
- 3The QSY-12-8 operates within a wide temperature range of -10°C to 80°C and supports operating pressures up to 14 bar, making it versatile for different environments.
- 4The product conforms to RoHS regulations and is designed for use with compressed air according to ISO 8573-1:2010, ensuring compliance with industry standards.
- 5Weighing only 27 grams, the QSY-12-8 is a compact and lightweight solution for pneumatic systems, making it easy to handle and install.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.5mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 27g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130612 |
