Product Model
qsy-1/4-8
Selling Points

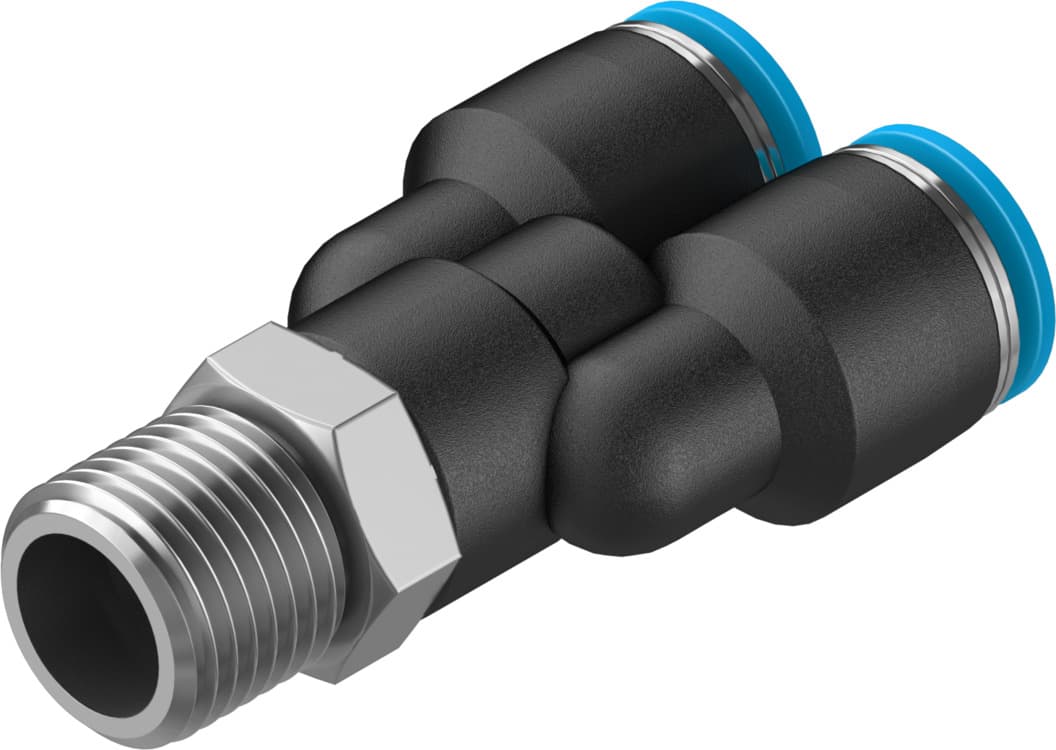

- 1Reliable Pneumatic Connection: The Festo QSY-1/4-8 push-in Y-fitting ensures secure and reliable connections in pneumatic systems, minimizing leaks and ensuring consistent performance.
- 2Versatile Mounting Options: This Y-fitting can be mounted in any position, providing flexibility in system design and installation. Its Y-shape design allows for efficient branching of pneumatic lines.
- 3High-Quality Materials: Constructed from PBT (Polybutylene Terephthalate), a durable and resistant material, the QSY-1/4-8 is designed to withstand various operating pressures and temperatures.
- 4Easy Installation: The push-in design makes installation quick and straightforward, eliminating the need for tools and reducing setup time. This feature is particularly useful in applications where speed is crucial.
- 5Compliant with Industry Standards: The QSY-1/4-8 is designed to operate with compressed air as per ISO 8573-1:2010 and meets the manufacturer's declaration for water usage, ensuring compliance with industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Y-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 25g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | External thread R1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153142 |
Specifications may be subject to change without notice
