Product Model
qsy-16
Selling Points

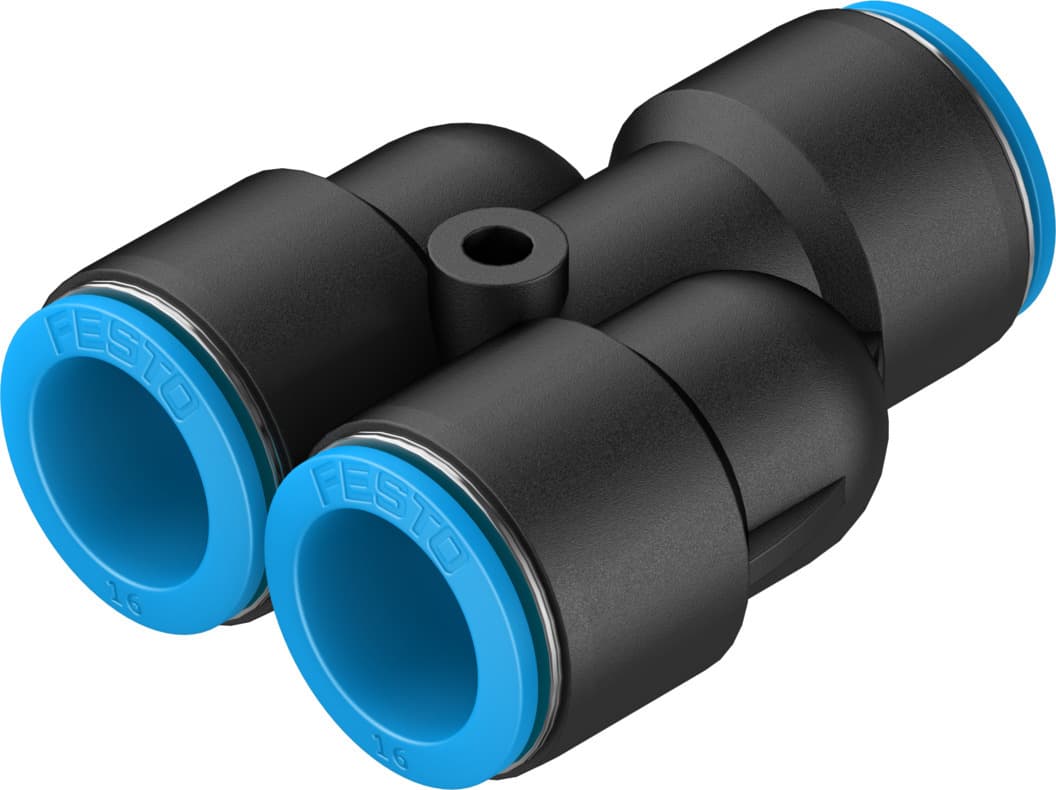

- 1The Festo QSY-16 push-in Y-connector is designed for standard pneumatic systems, ensuring easy installation and reliable operation. It features a nominal size of 8.5 mm and supports operating pressures up to 6 bar.
- 2This Y-connector is built with high-quality materials, including PBT for the housing and POM for the release ring, ensuring durability and resistance to corrosion. It also conforms to RoHS standards.
- 3The QSY-16 is versatile, allowing for any assembly position and supporting lubricated operation. It operates within a temperature range of -10°C to 80°C, making it suitable for various industrial applications.
- 4With two outputs and one supply line, this connector is ideal for branching pneumatic lines in your system. Its compact design and lightweight construction (45g) make it easy to handle and integrate.
- 5The Festo QSY-16 push-in Y-connector is certified for use in cleanroom environments (Class 4 according to ISO 14644-1) and meets maritime classification standards, ensuring it can be used in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 12.7mm |
Mounting position | Any | Design | Y-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 45g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 16 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130609 |
Specifications may be subject to change without notice
