Product Model
qsy-1/8-4
Selling Points

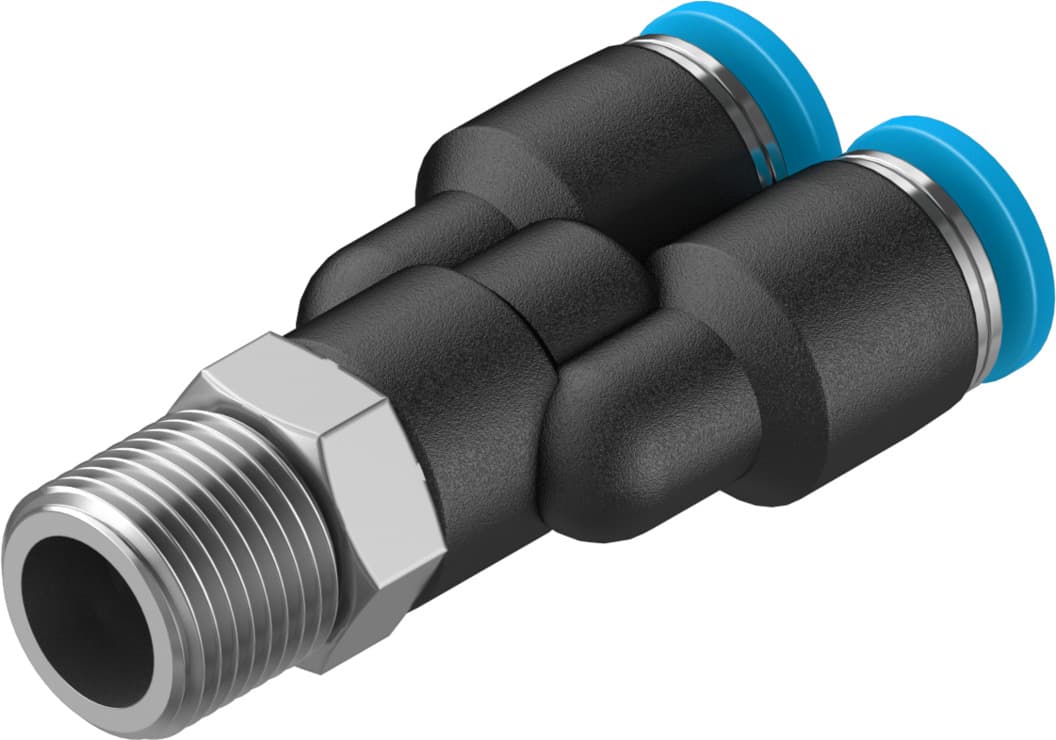

- 1High-Quality Materials: The Festo QSY-1/8-4 is made from high-quality PBT (Polybutylene Terephthalate) and features a nickel-plated brass screwed plug, ensuring durability and resistance to corrosion.
- 2Versatile Design: This push-in Y-fitting is designed for both straight and Y-Yap splicer applications, making it versatile for various pneumatic systems.
- 3Operating Pressure Range: The QSY-1/8-4 operates within a pressure range of -0.95 to 6 bar, suitable for compressed air and vacuum applications.
- 4Temperature Stability: It can operate in a temperature range of -10°C to 80°C, ensuring reliable performance in various environmental conditions.
- 5Easy Installation: The push-in principle allows for quick and easy installation, reducing setup time and increasing efficiency in pneumatic system assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.1mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Y-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 13g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153138 |
Specifications may be subject to change without notice
