Product Model
qsy-1/8-6
Selling Points

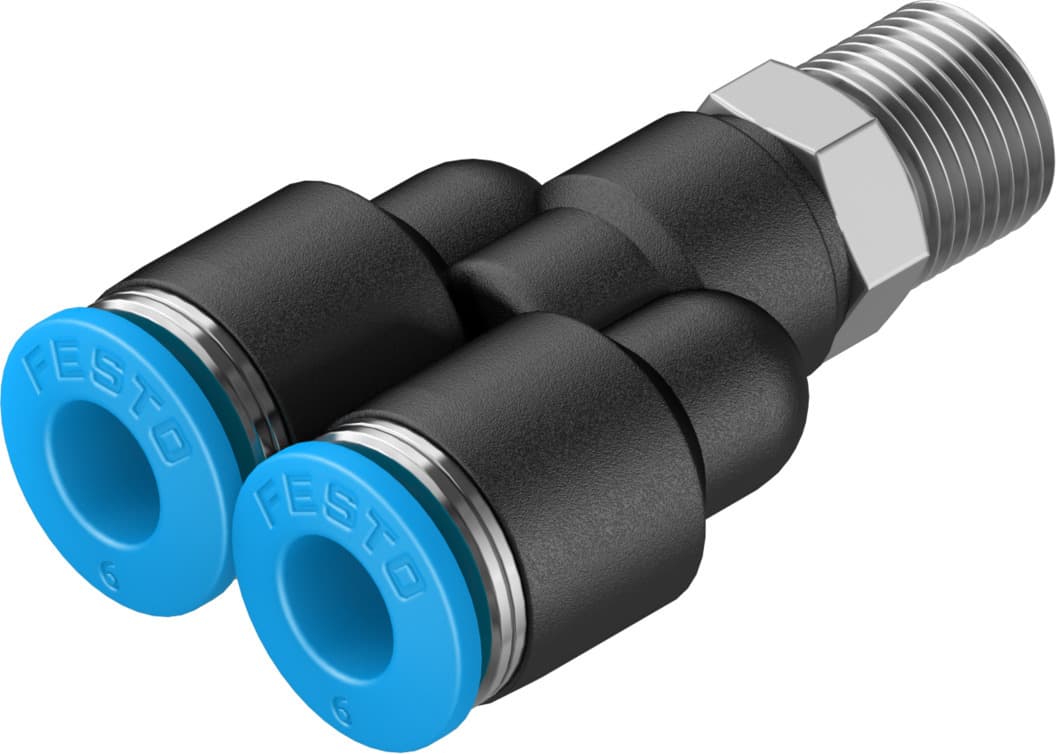

- 1The Festo QSY-1/8-6 push-in Y-fitting features a robust Y-shape design with a push-pull principle, ensuring reliable connections in pneumatic systems.
- 2This fitting supports operating pressures from -0.095 MPa to 0.6 MPa (or -0.95 bar to 6 bar), making it suitable for various pneumatic applications.
- 3Made from RoHS-compliant materials, including PBT for the housing and POM for the release ring, this fitting ensures durability and low corrosion stress.
- 4The QSY-1/8-6 can be mounted in any position, offering flexibility in system design and installation.
- 5With a nominal tightening torque of 7 Nm and a tolerance of ±20%, this fitting is easy to install and secure in place.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Y-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 15g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153139 |
Specifications may be subject to change without notice
