Product Model

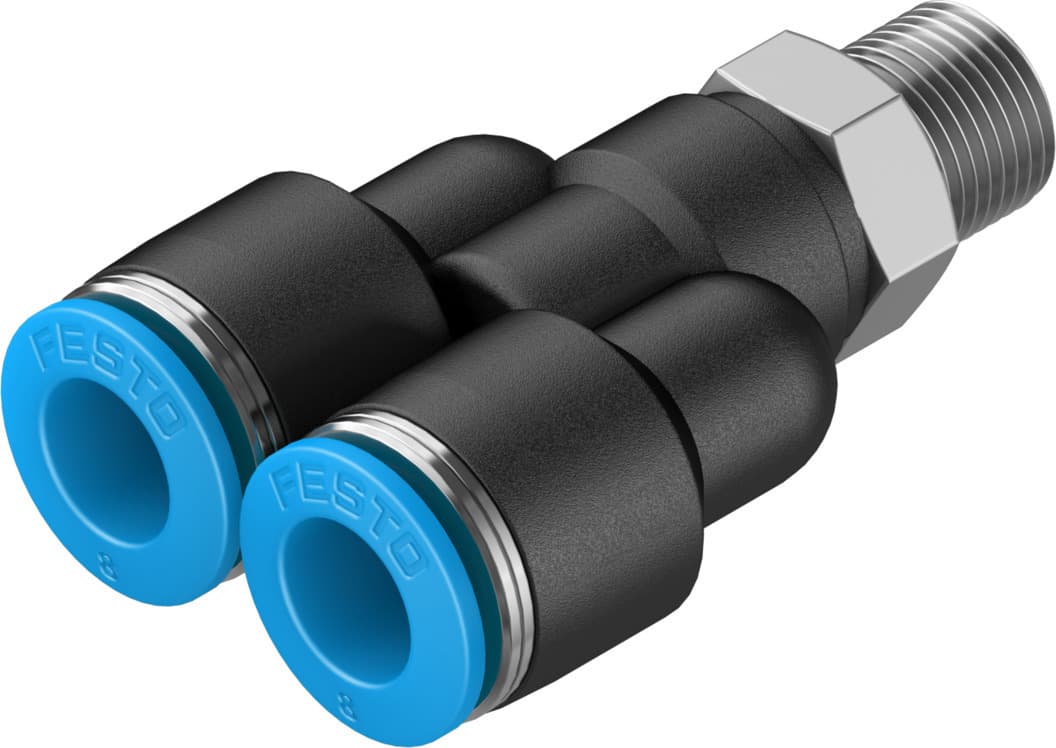

qsy-1/8-8
Selling Points
- 1The QSY-1/8-8 features a 360° orientable male thread with an external hexagon, ensuring easy installation and flexibility in any assembly position.
- 2With a corrosion resistance classification of CRC 1, this fitting is suitable for applications where low corrosion stress is a requirement.
- 3The QSY-1/8-8 supports operating pressures from -0.95 to 6 bar, making it versatile for various pneumatic applications.
- 4Constructed from PBT (Polybutylene Terephthalate) and featuring a blue release ring made of POM (Polyoxymethylene), this fitting is durable and resistant to wear.
- 5The push-in design allows for quick and easy connection, reducing installation time and increasing efficiency in your pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.9mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Y-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 20g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 12 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153141 |
Specifications may be subject to change without notice
