Product Model
qsy-4h
Selling Points

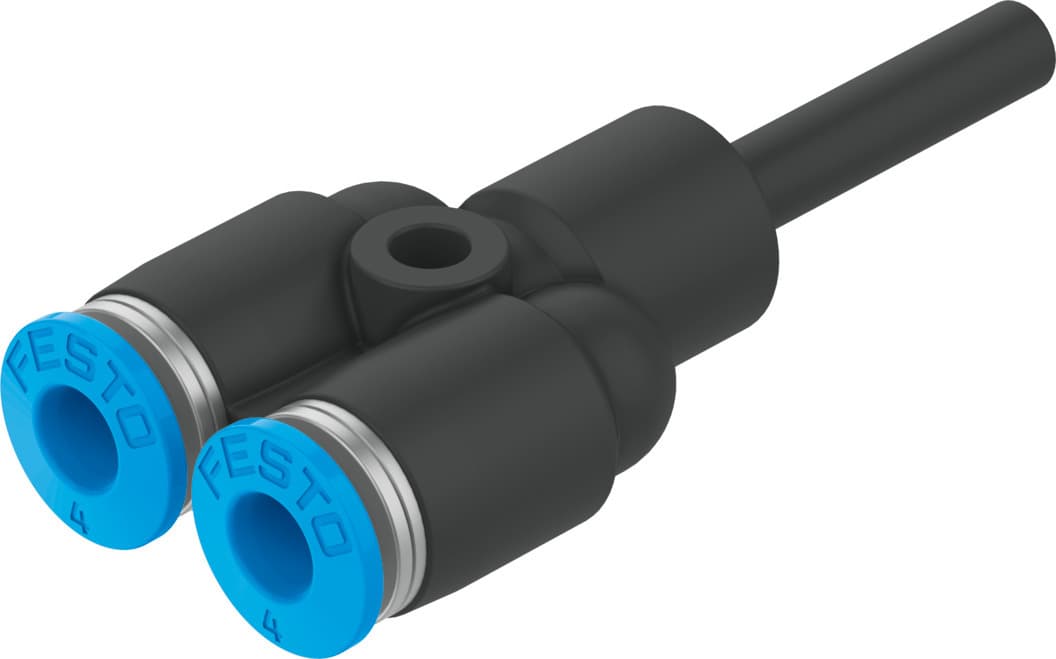

- 1The Festo QSY-4H features a push-pull principle for quick and simple installation, reducing setup time and increasing efficiency in your pneumatic system.
- 2This Y-connector operates effectively within a wide temperature range of -10°C to +80°C, making it suitable for various industrial applications.
- 3With a maximum operating pressure of up to 14 bar, the QSY-4H is designed to handle demanding pneumatic tasks with reliability and precision.
- 4Constructed with materials like PBT and POM, the QSY-4H offers low corrosion stress (CRC 1) and is compliant with RoHS regulations, ensuring durability in harsh environments.
- 5The QSY-4H supports both compressed air and water connections, providing flexibility in your pneumatic system setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 1.6mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 6.5g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | Push-in sleeve ? 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130628 |
Specifications may be subject to change without notice
