Product Model
qsy-6-100
Selling Points

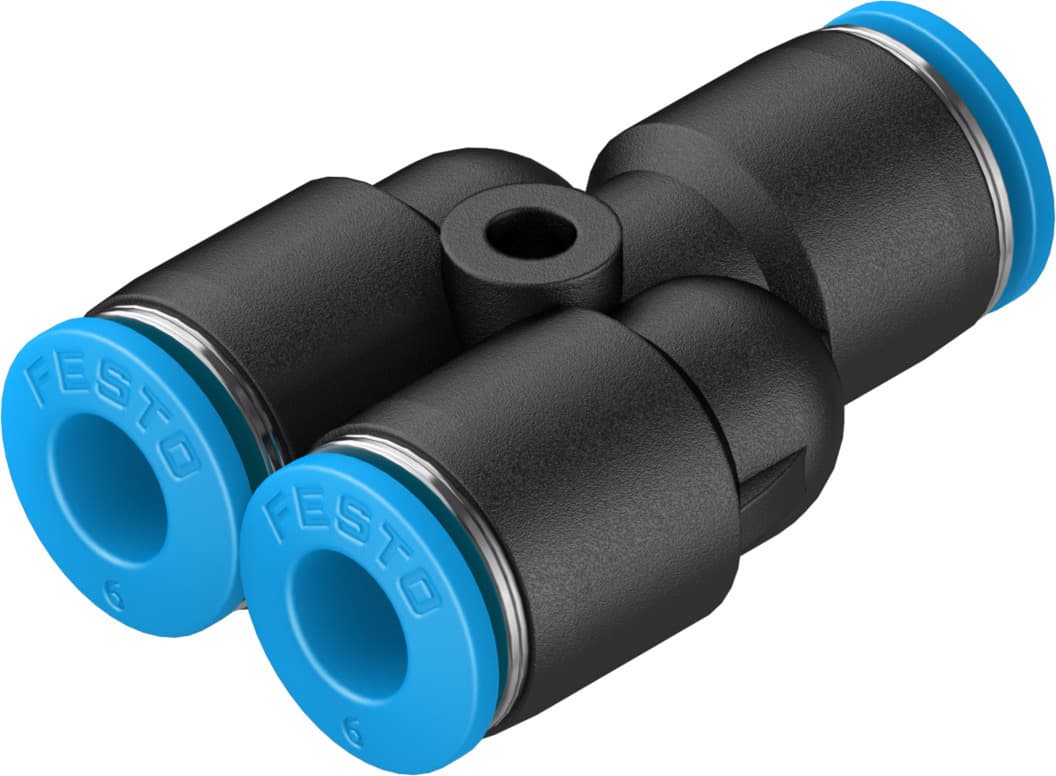

- 1The Festo QSY-6-100 push-in Y-connector is designed with a standard size and nominal width of 4.3 mm, making it versatile for various pneumatic applications.
- 2This connector features a push-pull principle design, allowing for easy and secure assembly in any mounting position, enhancing its usability in different setups.
- 3The QSY-6-100 operates within a wide temperature range of -10°C to 80°C and supports both compressed air and water as operating media, ensuring reliability in various environments.
- 4With a corrosion resistance class of 1 (low corrosion stress), this connector is suitable for applications requiring minimal risk of corrosion, ensuring long-term performance.
- 5The product is RoHS-compliant and made from high-quality materials like PBT for the housing and POM for the release ring, ensuring durability and compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Mounting position | Any | Design | Y-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 11g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130808 |
Specifications may be subject to change without notice
