Product Model
qsy-6-4-100
Selling Points

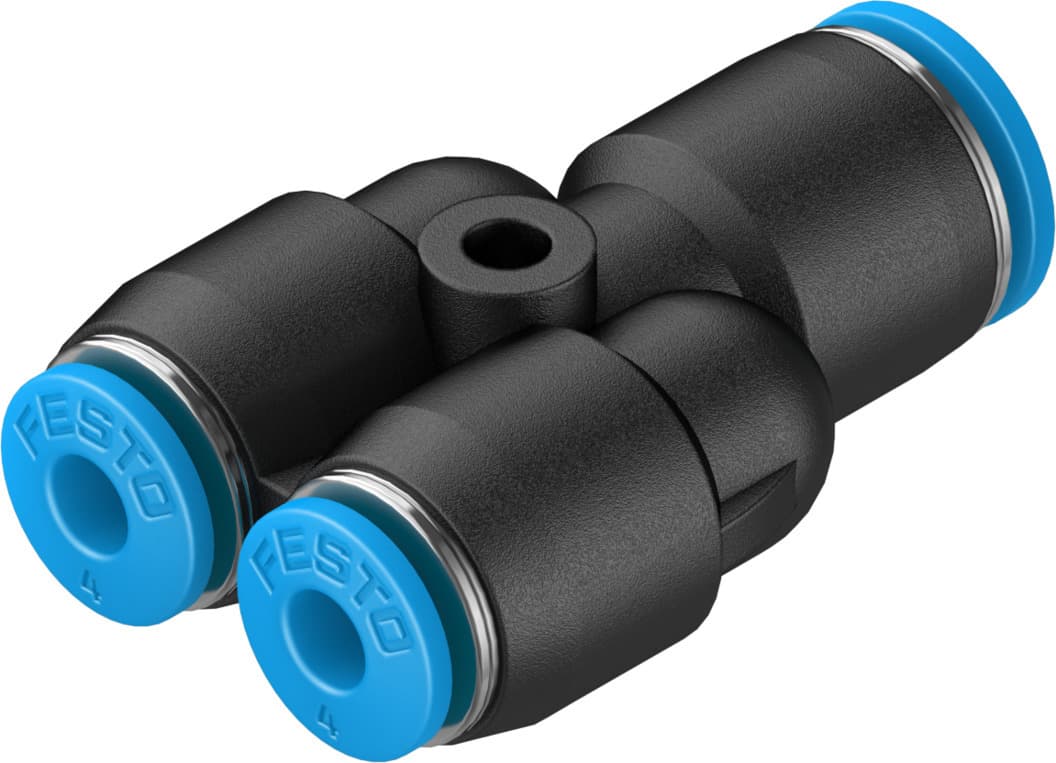

- 1The Festo QSY-6-4-100 push-in Y-connector is designed with a standard size and nominal diameter of 2.3 mm, making it versatile for various pneumatic systems.
- 2This Y-connector operates within a wide temperature range of -10°C to 80°C and supports both compressed air and water, ensuring reliability in diverse environments.
- 3With a push-pull principle design, the QSY-6-4-100 is easy to assemble and disassemble, reducing installation and maintenance time.
- 4The connector features two outputs and one supply line, allowing for efficient distribution of compressed air or water in pneumatic systems.
- 5Made from RoHS-compliant materials like PBT for the housing and POM for the release ring, this Y-connector meets stringent environmental standards while ensuring durability and low corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.3mm |
Mounting position | Any | Design | Y-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 11g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130812 |
Specifications may be subject to change without notice
