Product Model
qsy-6h-4
Selling Points

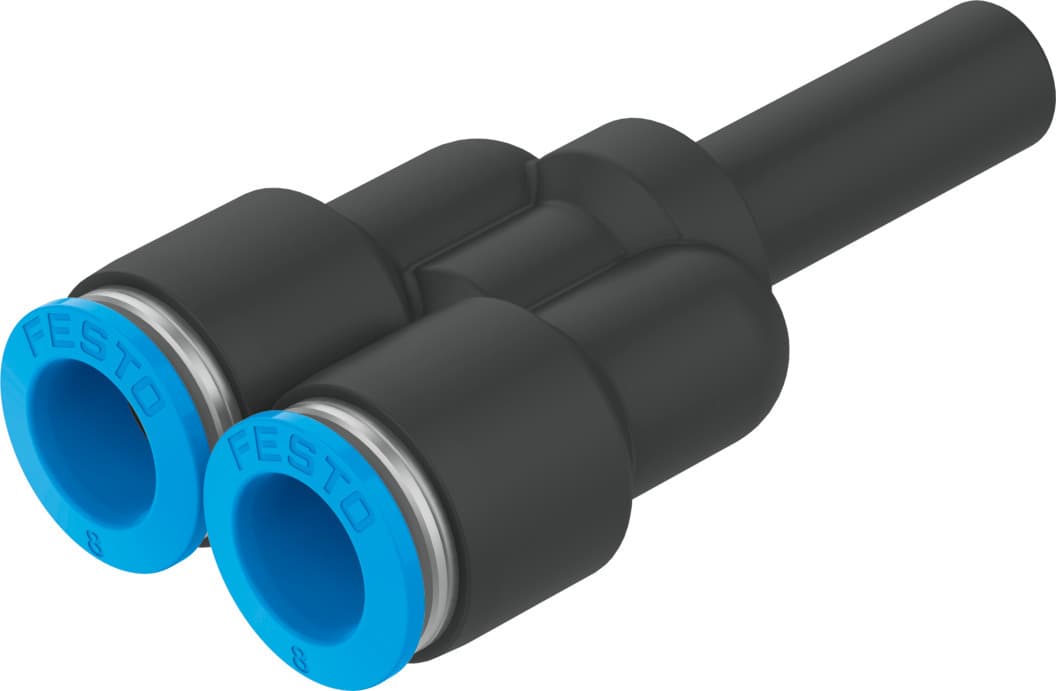

- 1The Festo QSY-6H-4 push-in Y-connector is built with a robust push/pull principle, ensuring reliable performance in various pneumatic applications.
- 2This connector can be assembled in any position, making it versatile for different setup configurations.
- 3Meets ISO 8573-1:2010 for compressed air and manufacturer’s declaration for water use, ensuring compliance with industry standards.
- 4Classified as CRC 1, indicating low corrosion stress, making it suitable for applications where corrosion resistance is crucial.
- 5Weighs only 6.8 grams, making it a compact and lightweight solution for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.3mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 6.8g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | Push-in sleeve ? 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130633 |
Specifications may be subject to change without notice
