Product Model
qsy-8-4
Selling Points

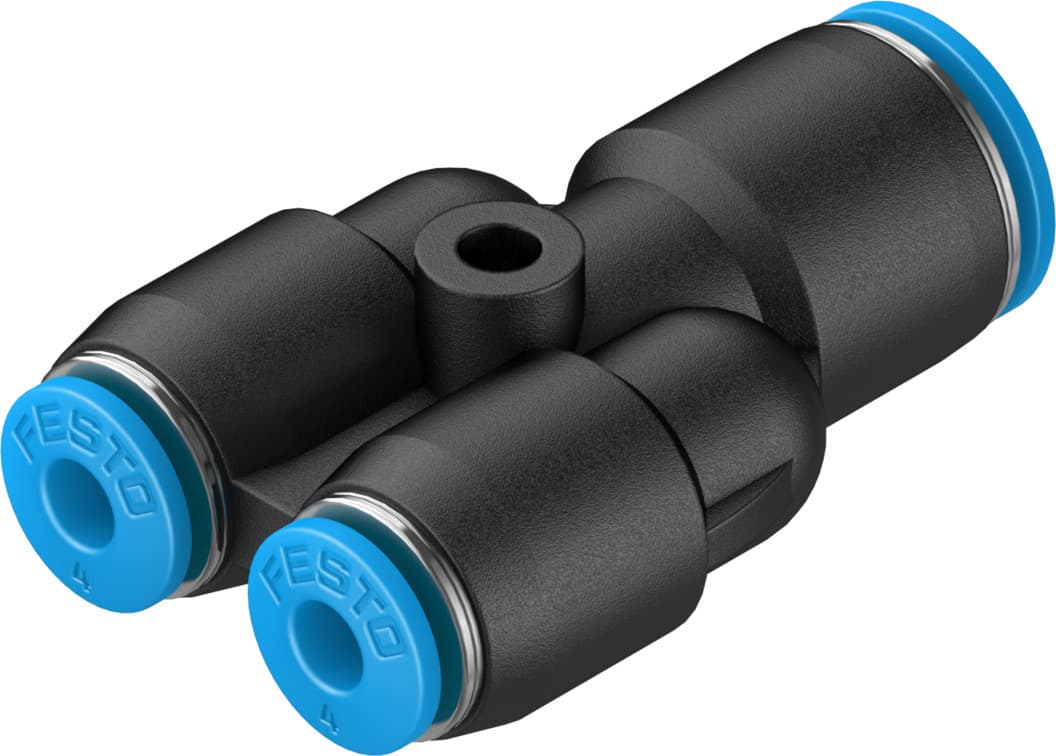

- 1The Festo QSY-8-4 push-in Y-connector is designed for a wide range of tasks, offering flexibility and durability with its highly resistant materials.
- 2This Y-shaped fitting features a push-pull design, making it easy to install and ensuring a high level of abrasion resistance in dynamic applications.
- 3The QSY-8-4 meets all requirements for standard applications with increased pressure and temperature ranges, ensuring reliable performance in various environments.
- 4The product is compliant with ISO 8573-1:2010 and RoHS standards, making it suitable for maritime applications and ensuring environmental safety.
- 5The Festo QSY-8-4 is manufactured using high-quality materials such as PBT, POM, and NBR, ensuring long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 1.7mm |
Mounting position | Any | Design | Y-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 13g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130610 |
Specifications may be subject to change without notice
