Product Model
qsy-g3/8-10
Selling Points

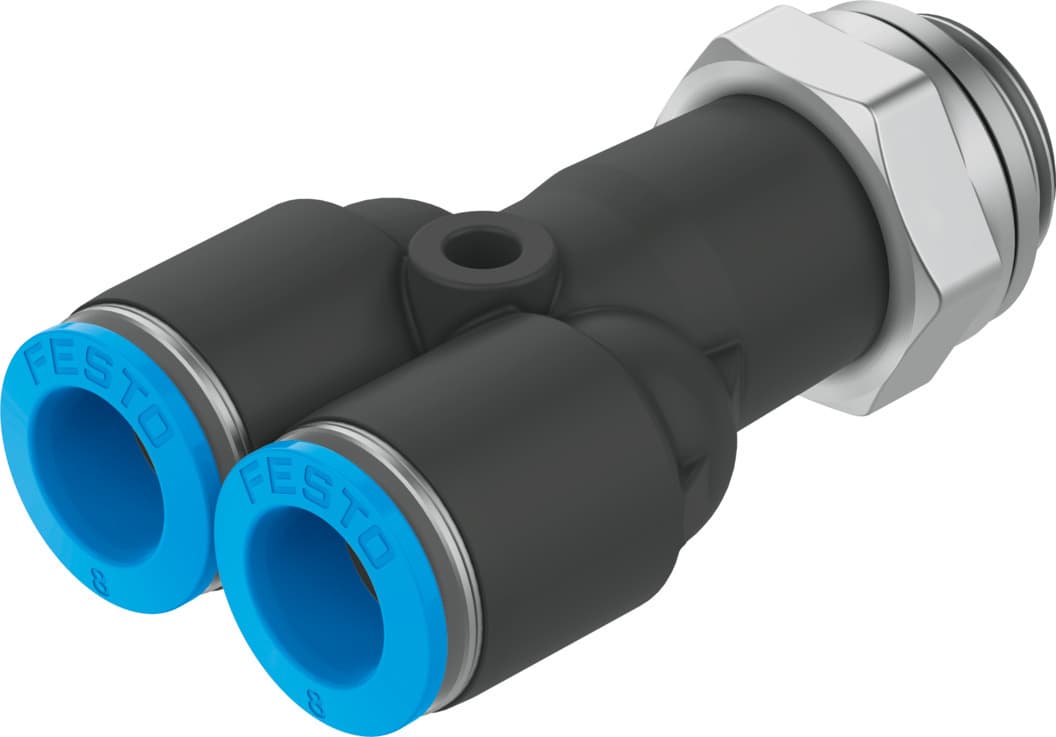

- 1The Festo QSY-G3/8-10 push-in Y-fitting offers a 360° orientable design, ensuring flexibility in various applications. Its male thread with an external hexagon provides a secure connection for pneumatic tubing.
- 2This Y-fitting is engineered for use with compressed air and water, making it versatile for different industrial needs. It features a sealing ring for reliable operation and minimal leakage.
- 3With a nominal size of 7.4 mm and a standard size, the QSY-G3/8-10 is designed to fit perfectly into most pneumatic systems. Its compact size makes it ideal for space-constrained environments.
- 4The Festo QSY-G3/8-10 boasts a low corrosion resistance class (CRC 1), ensuring it can withstand harsh environments without compromising its performance. This makes it suitable for use in various industrial settings.
- 5This push-in Y-fitting is made from high-quality materials, including PBT and nickel-plated brass, ensuring durability and reliability in demanding applications. It also meets RoHS compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.4mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Y-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 42g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 19 |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186186 |
Specifications may be subject to change without notice
