Product Model
qsyl-1/8-4
Selling Points

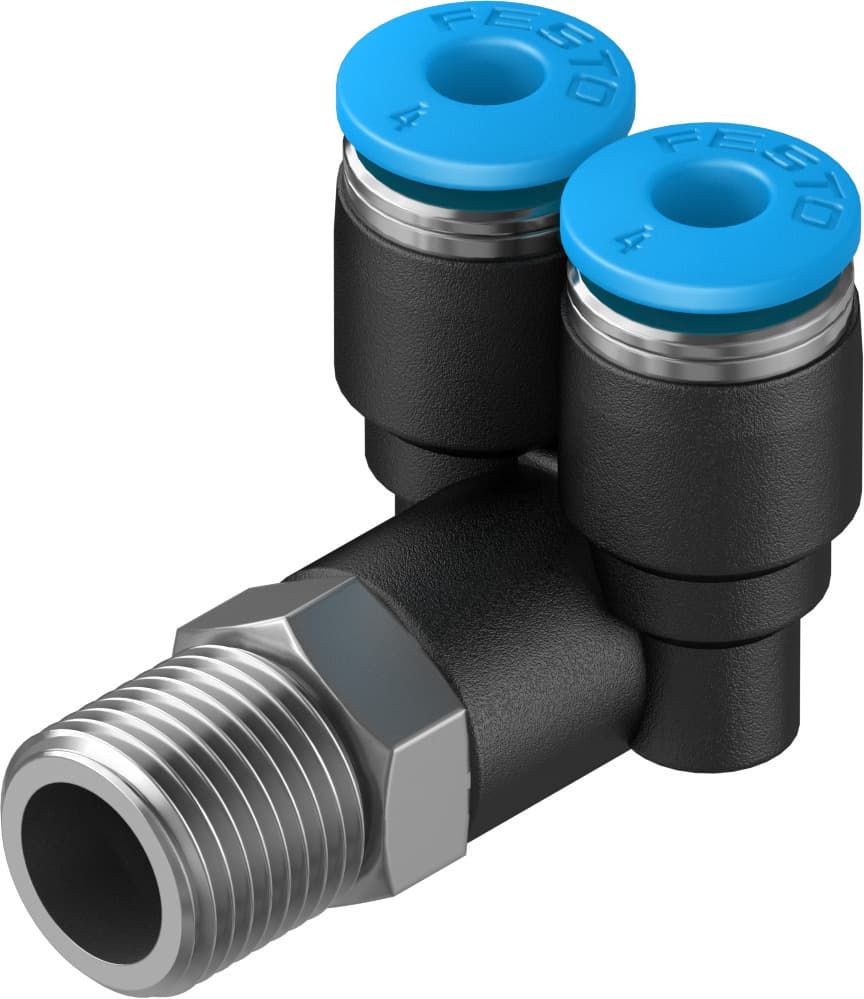

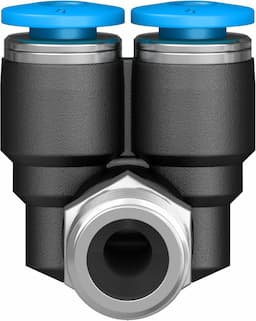

- 1The Festo QSYL-1/8-4 push-in Y-fitting is designed for easy installation with a push-pull principle, ensuring quick and secure connections in pneumatic systems.
- 2This Y-fitting supports operating pressures up to 6 bar and temperatures from -10°C to 80°C, making it suitable for a wide range of applications.
- 3The QSYL-1/8-4 features a brass, nickel-plated screwed plug and a PBT housing, ensuring high corrosion resistance and durability.
- 4With a nominal width of 3.9 mm and an external thread R1/8, this Y-fitting is compatible with 4 mm pneumatic tubing, providing a secure seal and reliable performance.
- 5The QSYL-1/8-4 is RoHS-compliant and suitable for use with compressed air as per ISO 8573-1:2010, as well as water according to manufacturer's declaration, making it versatile for various media applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.9mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 13g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153172 |
