Product Model
qsyl-1/8-6
Selling Points

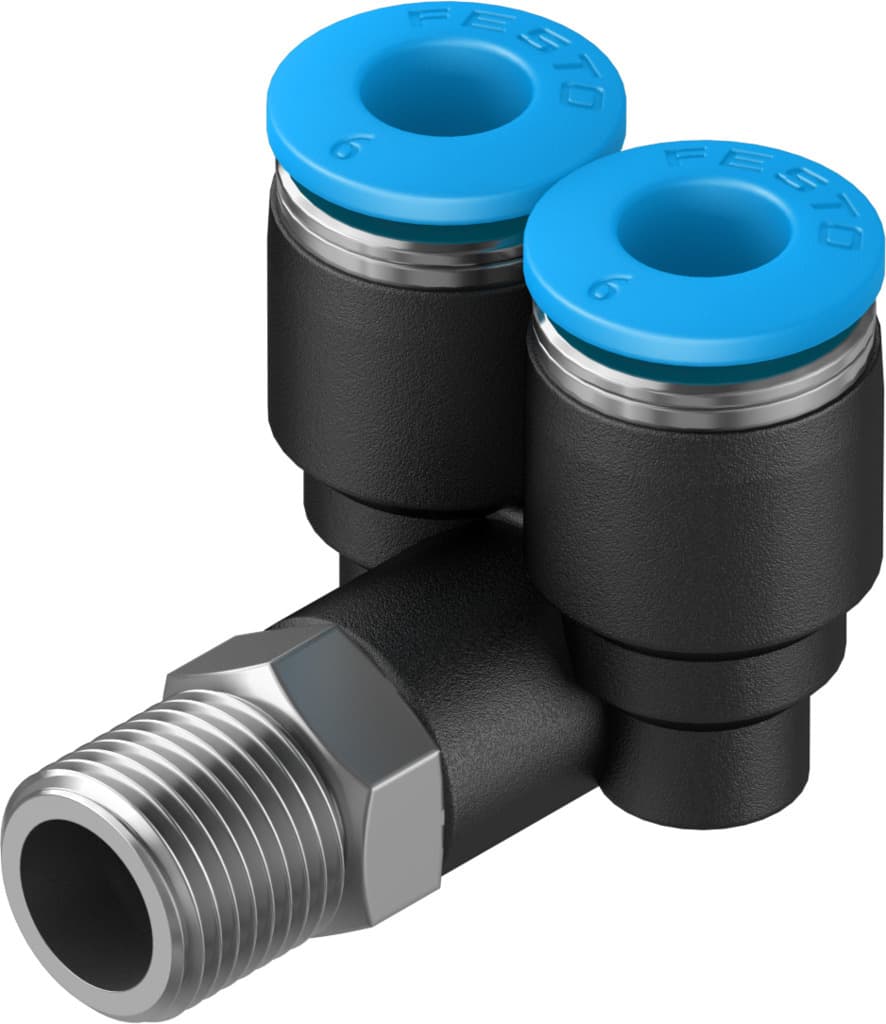

- 1The Festo QSYL-1/8-6 Push-in Y-Fitting ensures reliable pneumatic connections with its standard nominal size of 4.2 mm, making it suitable for various industrial applications.
- 2This fitting operates within a temperature range of -10°C to 80°C and supports pressures from -0.95 to 6 bar, accommodating diverse operating conditions.
- 3Constructed from PBT (Polybutylene Terephthalate), the housing provides excellent durability and resistance to chemicals, ensuring long-lasting performance.
- 4With a corrosion resistance class (CRC) of 1, the QSYL-1/8-6 is designed to handle low corrosion stress, making it suitable for applications where corrosion is a concern.
- 5Featuring a push-pull principle and an external hexagon mounting position, the QSYL-1/8-6 is easy to install and orientable in 360 degrees, facilitating quick setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 15g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 10 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153173 |
Specifications may be subject to change without notice
