Product Model
qsyl-3/8-10
Selling Points

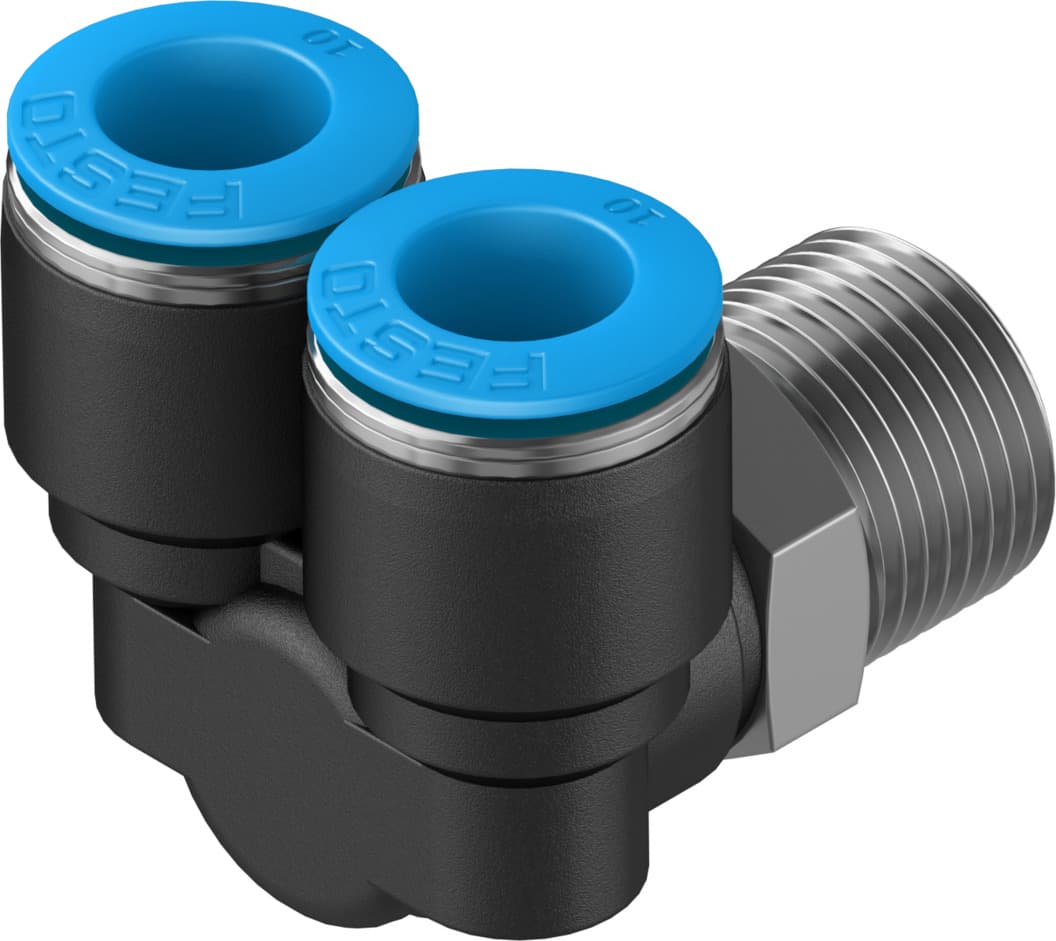

- 1The Festo QSYL-3/8-10 push-in Y-fitting features a 360° orientable design, allowing for easy installation and flexibility in various mounting positions.
- 2Equipped with a coating type seal on the screw-in stud, this fitting ensures a reliable and durable connection, minimizing leaks and ensuring consistent performance.
- 3With a nominal width of 9.2 mm, the QSYL-3/8-10 is designed to fit standard pneumatic tubing, making it versatile for a wide range of applications.
- 4The male thread with an external hexagon provides a secure and easy-to-use connection, ensuring that the fitting remains firmly in place during operation.
- 5Suitable for various industrial applications, including pneumatic systems, the QSYL-3/8-10 push-in Y-fitting is a reliable choice for maintaining efficient and safe operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 43g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153179 |
Specifications may be subject to change without notice
