Product Model
qsyl-3/8-8
Selling Points

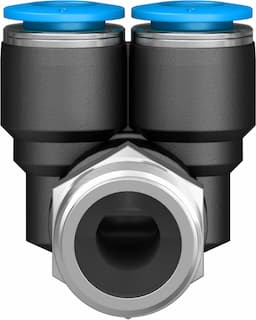

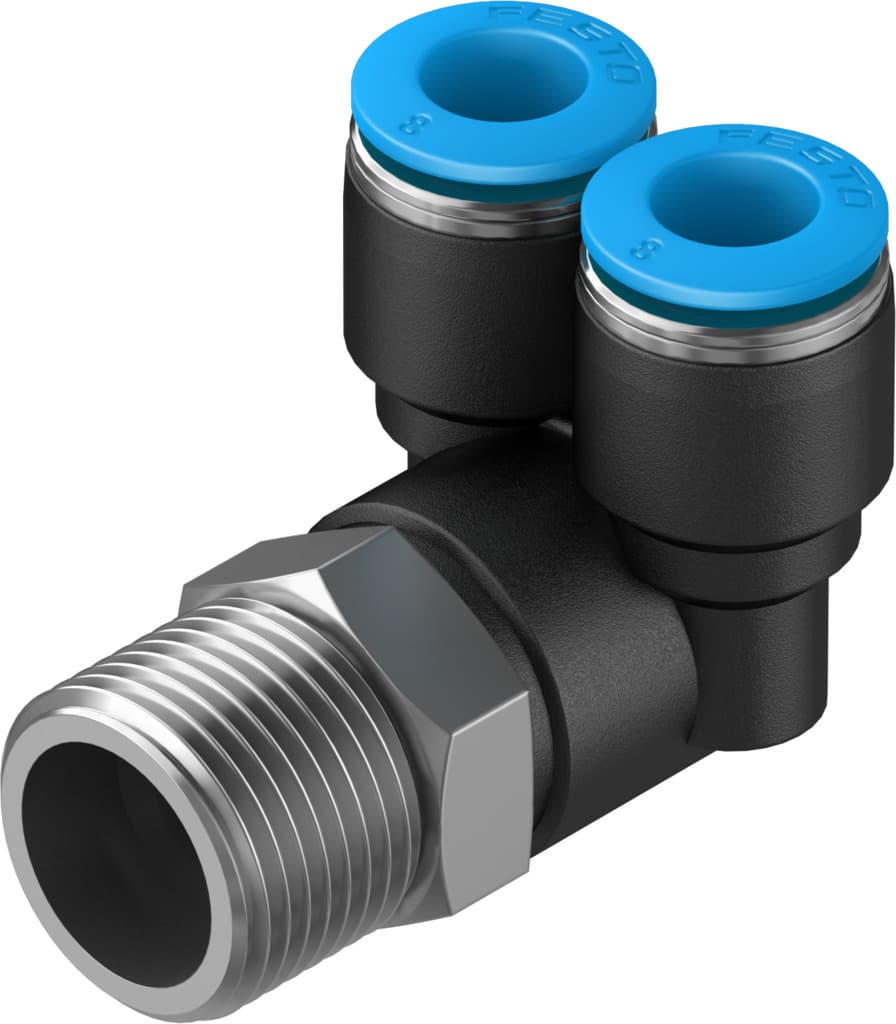

- 1The Festo QSYL-3/8-8 push-in Y-fitting ensures secure and leak-free connections in pneumatic systems, making it ideal for various industrial applications.
- 2This fitting is 360° orientable and features a male thread with an external hexagon, allowing for easy installation and flexibility in mounting positions.
- 3The QSYL-3/8-8 can operate within a wide temperature range and supports pressures up to 0.6 MPa (87 psi), making it suitable for demanding industrial environments.
- 4The fitting is made from corrosion-resistant materials, including nickel-plated brass and PBT housing, ensuring durability and longevity in harsh conditions.
- 5With a push-pull principle and a nominal torque of 15.5 Nm, the QSYL-3/8-8 is designed for quick and effortless installation, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 37g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 17 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153177 |
Specifications may be subject to change without notice
