Product Model

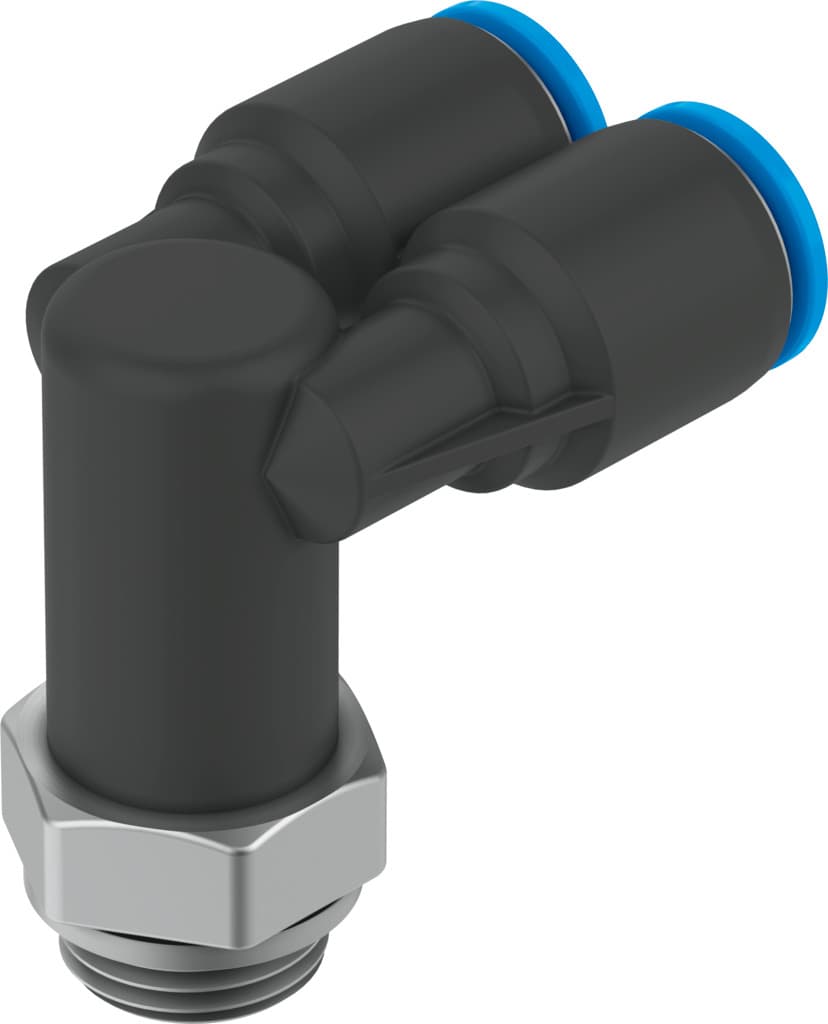

qsyl-g1/4-8
Selling Points
- 1The QSYL-G1/4-8 is made from nickel-plated brass and PBT, ensuring durability and resistance to corrosion, making it suitable for various industrial environments.
- 2This push-in Y-fitting features an external hexagon size of 17 mm, allowing for easy mounting and 360° orientation, providing flexibility in installation.
- 3Equipped with a sealing ring, the QSYL-G1/4-8 ensures a secure and leak-free connection, maintaining the integrity of compressed air systems.
- 4Designed to operate within a wide temperature range of -10°C to 80°C and pressure range of -0.95 to 6 bar, making it suitable for various industrial applications.
- 5The push-pull principle of the QSYL-G1/4-8 allows for quick and easy installation, reducing setup time and increasing productivity in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 29g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186193 |
Specifications may be subject to change without notice
