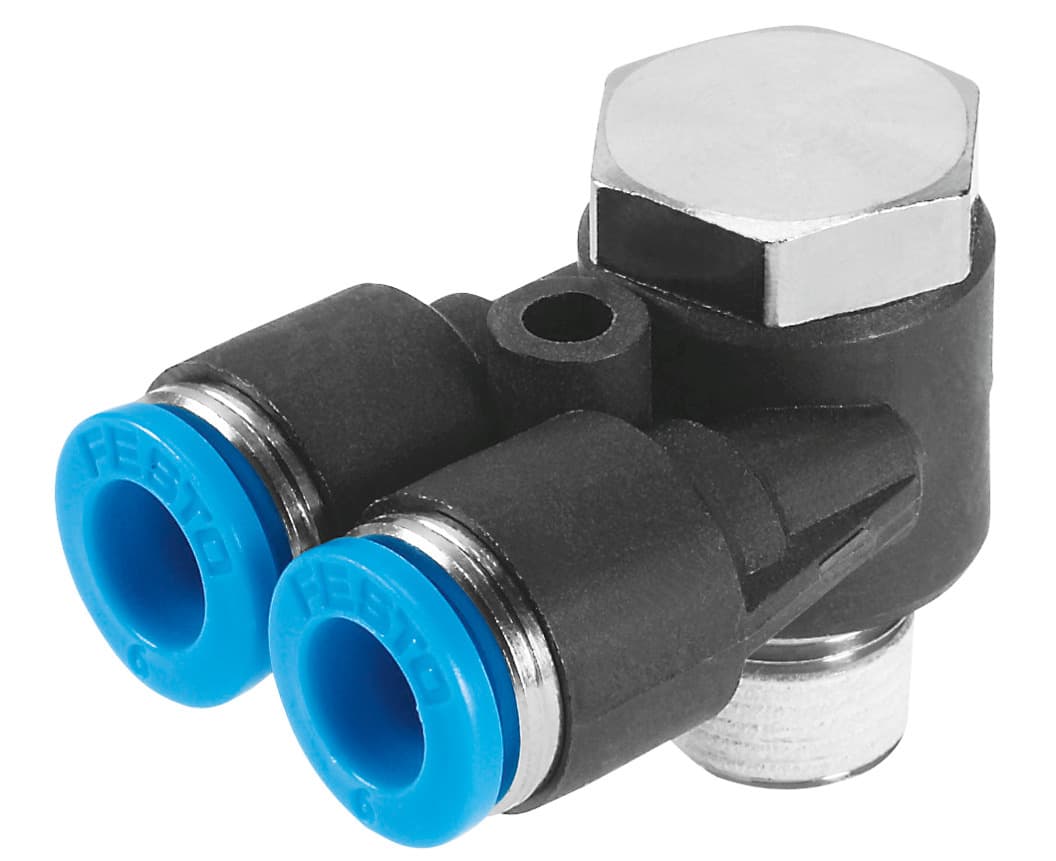

Product Model
qsylv-1/2-12
Selling Points
- 10° Orientation: The QSYLV-1/2-12 offers a unique 360° swivel design, allowing for flexible and versatile pneumatic connections in various applications.
- 2High Operating Pressure: This fitting is engineered to handle operating pressures up to 0.6 MPa (6 bar) and temperature-dependent pressures up to 1.4 MPa (14 bar).
- 3Robust Construction: Made from high-quality materials, including brass and nickel-plated hollow bolts, ensuring durability and resistance to corrosion.
- 4Easy Installation: The push-in design simplifies the installation process, reducing the need for complex plumbing and minimizing setup time.
- 5Versatile Applications: Suitable for use with compressed air as per ISO 8573-1:2010 and water (liquid, ice-free), making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.1mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 102g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153195 |
Specifications may be subject to change without notice
