Product Model
qsylv-1/4-8
Selling Points

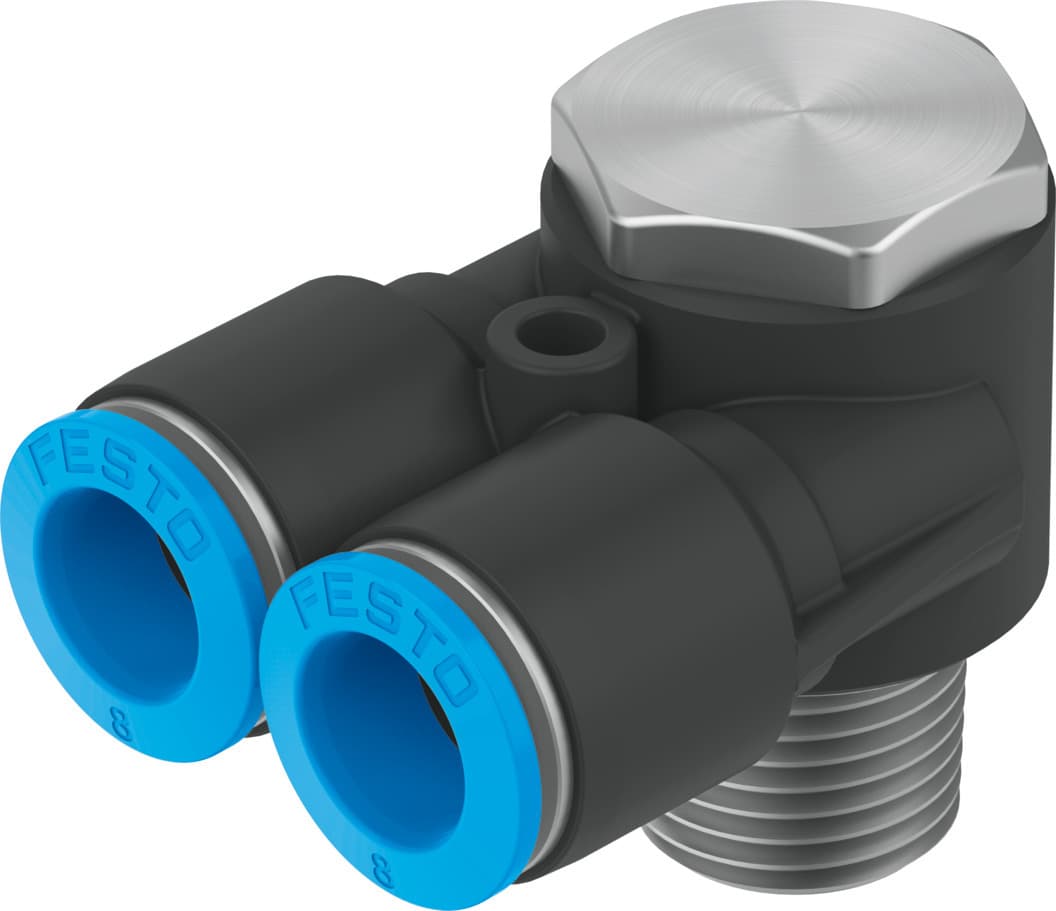

- 1The Festo QSYLV-1/4-8 push-in Y-fitting offers a 360° orientable design, allowing for versatile installation in any position.
- 2Constructed with PBT housing, POM release ring, and NBR tubing seal, ensuring durability and resistance to corrosion.
- 3Suitable for compressed air in accordance with ISO 8573-1:2010 and water as per manufacturer's declaration, making it versatile for various applications.
- 4The QSYLV-1/4-8 operates within a pressure range of -0.95 to 6 bar, ensuring reliable performance in various pneumatic systems.
- 5Featuring a push-pull principle and male thread with external hexagon, the QSYLV-1/4-8 is easy to install and maintain, reducing downtime and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.4mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, dual, parallel | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 41.5g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153193 |
Specifications may be subject to change without notice
