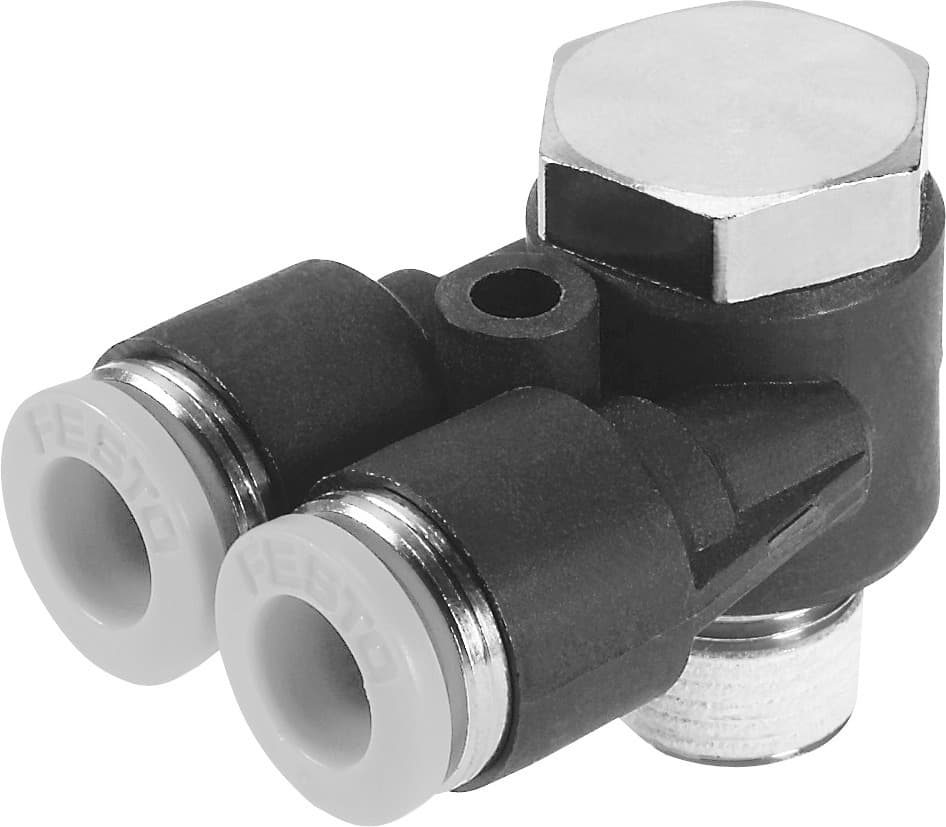

Festo QSYLV-1/8-3/16-U Push-in T-Fitting - High-Quality Pneumatic Connection

Selling Points

1The Festo QSYLV-1/8-3/16-U offers a versatile 360° orientable design, allowing for easy installation and flexibility in your pneumatic system.
2Constructed with PBT housing and NBR tubing seal, this fitting ensures high corrosion resistance and durability in various operating conditions.
3Designed for use with compressed air in accordance with ISO 8573-1:2010, making it suitable for a wide range of industrial applications.
4Featuring a push-pull principle, this fitting is easy to assemble and disassemble, reducing maintenance time and effort.
5Capable of operating within a temperature range of -10°C to 60°C and pressure range of -0.95 to 10 bar, ensuring reliable performance in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Type of seal on screwed plug	Coating
Mounting position	Any	Design	L-shape, dual, parallel
Pack size	1	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 145psi	Maritime classification	See certificate
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. tightening torque	8Nm
No. of outlets	2	No. of supply lines	1
Type of mounting	Hollow bolt with external hex	Pneumatic connection 1	external thread 1/8 NPT
Pneumatic connection 2	for pneumatic tubing outside diameter 3/16"	Ambient temperature Fahrenheit	14°F 140°F
Releasing ring color	Gray	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153794

Specifications may be subject to change without notice
