Product Model

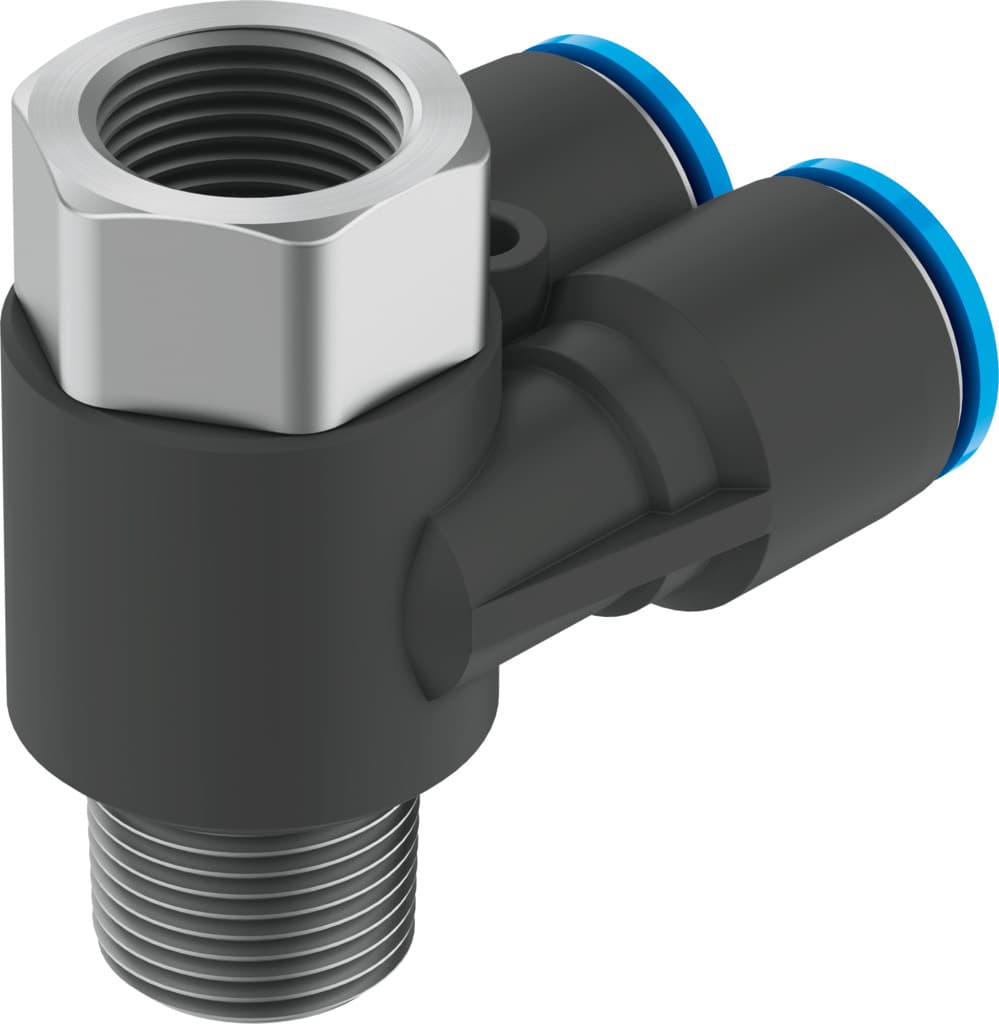

qsytf-1/4-8-b
Selling Points
- 1Efficient Pneumatic Connection: The QSYTF-1/4-8-B features a push-in Y design with male and female threads, providing quick and reliable pneumatic connections.
- 2Versatile Industrial Use: Suitable for a wide range of industrial applications, including automotive, semiconductor, and medical industries.
- 3High-Quality Materials: Constructed with nickel-plated brass for the threaded portion and plastic for the body, ensuring durability and resistance to corrosion.
- 4Operational Temperature Range: Designed to operate within a temperature range of -10 to 80°C, making it suitable for various environmental conditions.
- 5Easy Installation: The push-to-connect metric design allows for easy installation without the need for tools, reducing setup time and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 43g | No. of outlets | 3 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread R1/4 |
Pneumatic connection 2 | Internal thread G1/4 for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153197 |
Specifications may be subject to change without notice
