Product Model
qsytf-1/8-6-b
Selling Points

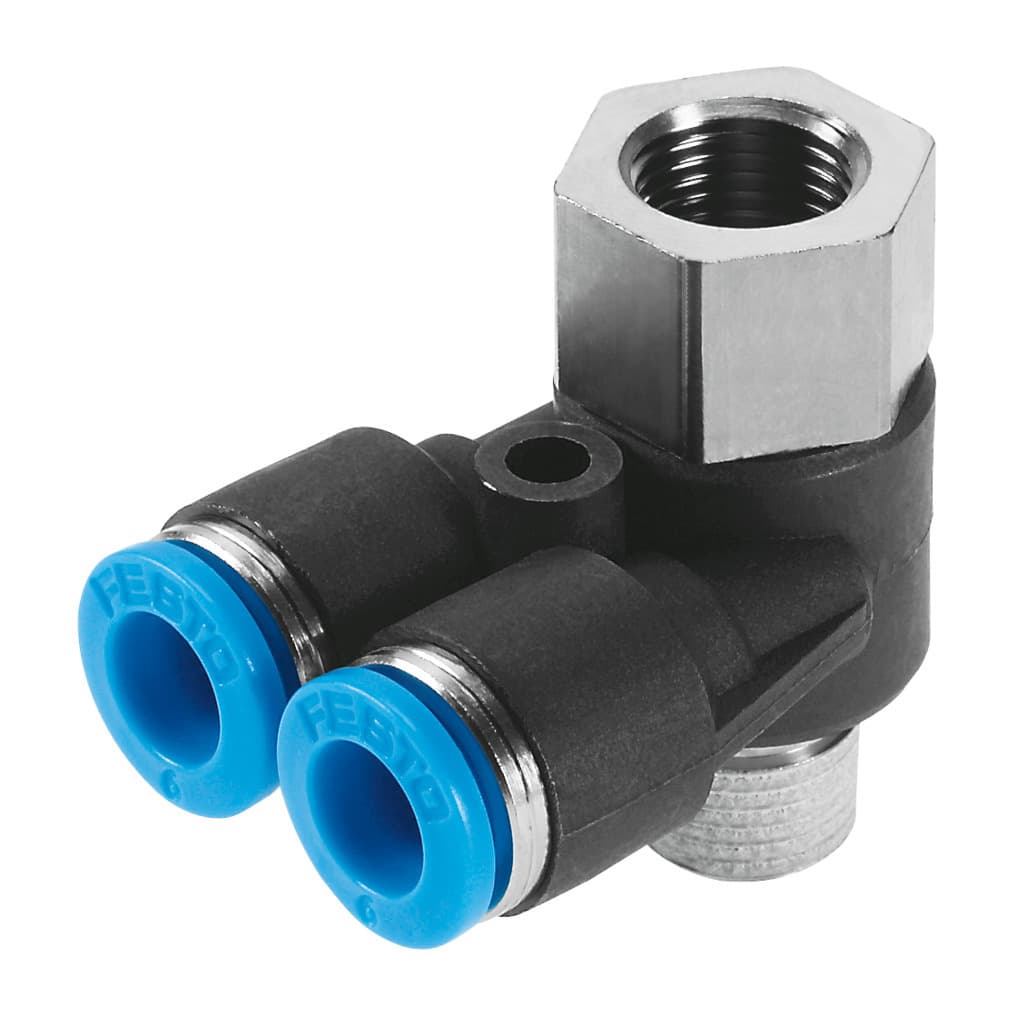

- 1The Festo QSYTF-1/8-6-B is a high-quality pneumatic fitting designed for compressed air and water applications, ensuring reliable performance in various industrial settings.
- 2This fitting features a push-pull principle design, making it easy to use and reducing the risk of leaks, ensuring efficient operations.
- 3With a nominal size of 3.1 mm and operating pressures ranging from -0.095 MPa to 6 BAR, it offers a wide range of operating conditions suitable for different applications.
- 4The QSYTF-1/8-6-B boasts excellent corrosion resistance with a low corrosion stress class (CRC) and conforms to VDMA24364-B1/B2-L standards, ensuring durability in harsh environments.
- 5Made from high-quality materials including PBT housing, nickel-plated brass hollow bolt, and NBR tubing seal, this fitting is both durable and compliant with RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.1mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 27g | No. of outlets | 3 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread R1/8 |
Pneumatic connection 2 | Internal thread G1/8 for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153196 |
Specifications may be subject to change without notice
