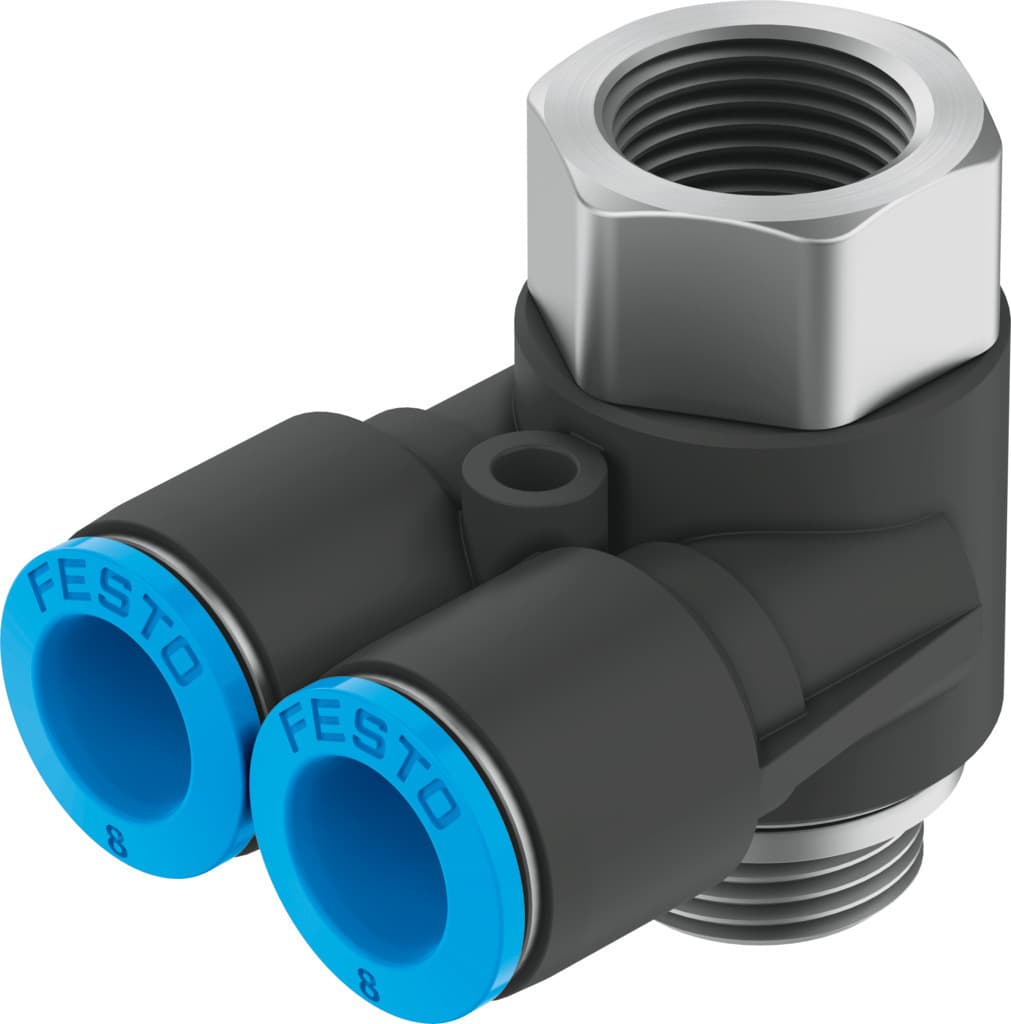

Product Model
qsytf-g1/8-6
Selling Points
- 1Reliable Pneumatic Connection: The Festo QSYTF-G1/8-6 Push-In Y fitting ensures a secure and leak-free connection with its push-to-connect metric design.
- 2Versatile Applications: Suitable for both compressed air and water, this fitting is ideal for various industrial applications requiring high-pressure connections.
- 3Durable Construction: Made from nickel-plated brass for the threaded portion and plastic for the body, this fitting offers durability and resistance to corrosion.
- 4Easy Installation: Featuring a push-pull principle design, the QSYTF-G1/8-6 is easy to install and requires minimal effort, making it a convenient choice for maintenance and repairs.
- 5Compliant with Industry Standards: Meets ISO 8573-1:2010 standards for compressed air and is RoHS compliant, ensuring it meets the highest industry standards for safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.1mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 32g | No. of outlets | 3 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread G1/8 |
Pneumatic connection 2 | Internal thread G1/8 for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186213 |
Specifications may be subject to change without notice
