Product Model
sdas-mhs-m40-1l-pnlk-pn-e-0.3-m8
Selling Points
- 1Compact design for space-restricted applications.
- 2Dual functions: Position transmitter and programmable proximity sensor.
- 3High accuracy with displacement resolution ≤ 0.02 mm.
- 4IO-Link output for advanced diagnostics and process data.
- 5Robust construction with high-alloy stainless steel housing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Symbol | 00995894 |
Certification | RCM compliance mark c UL us - Listed (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E232949 |
Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
Measured variable | Position | Measuring principle | Magnetic Hall |
Sensing range | 52000μm | Ambient temperature | -40°C 80°C |
Typical sampling interval | 2ms | Max. travel speed | 3m/s |
Displacement resolution | 0.02mm | Repetition accuracy | 0.2mm |
Switching output | 2x PNP or 2x NPN adjustable | Switching element function | N/C contact/N/O contact switchable |
On time | 4ms | Switch-off time | 4ms |
Max. switching frequency | 125Hz | Max. switching output voltage DC | 30V |
Max. output current | 50mA | Max. switching capacity DC | 1.5W |
Voltage drop | 0.5V | Typical linearity error | ±1 mm |
Short-circuit protection | yes | Overload protection | Available |
Protocol | I-Port IO-Link? | IO-Link?, protocol version | Device V 1.1 |
IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Process data variable (PDV) Identification Diagnostics Teach channel Switching signal channel (SSC) |
IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, SIO mode support | Yes |
IO-Link?, port class | A | IO-Link?, process data width IN | 2 Byte |
IO-Link?, process data content IN | 12 bit PDV (position measurement) 4 bit SSC (switching signal) | IO-Link?, minimum cycle time | 2.5 ms |
DC operating voltage range | 10V 30V | Residual ripple | 10 % |
Idle current | 12mA | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable with plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |

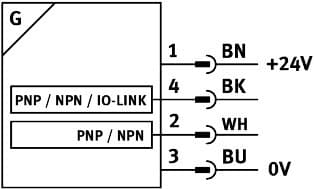

Electrical connection for input 1, connection pattern | 00991171 | Connection outlet orientation | Longitudinal |
Material of pin contacts | Copper alloy, gold-plated | Connector cable test conditions | Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Cable length | 0.3m | Cable characteristic | Suitable for energy chains/robot applications |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Screwed tightly Can be inserted in slot from above | Mounting position | Any |
Product weight | 9.5g | Housing material | PA-reinforced High-alloy stainless steel |
Material of union nut | Brass, nickel-plated | Switching status indication | LED yellow |
Status indicator | LED red | Setting options | IO-Link? Capacitive pushbutton |
Ambient temperature with flexible cable installation | -20°C 70°C | Degree of protection | IP65 IP68 |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8063974 |
Specifications may be subject to change without notice
