Product Model

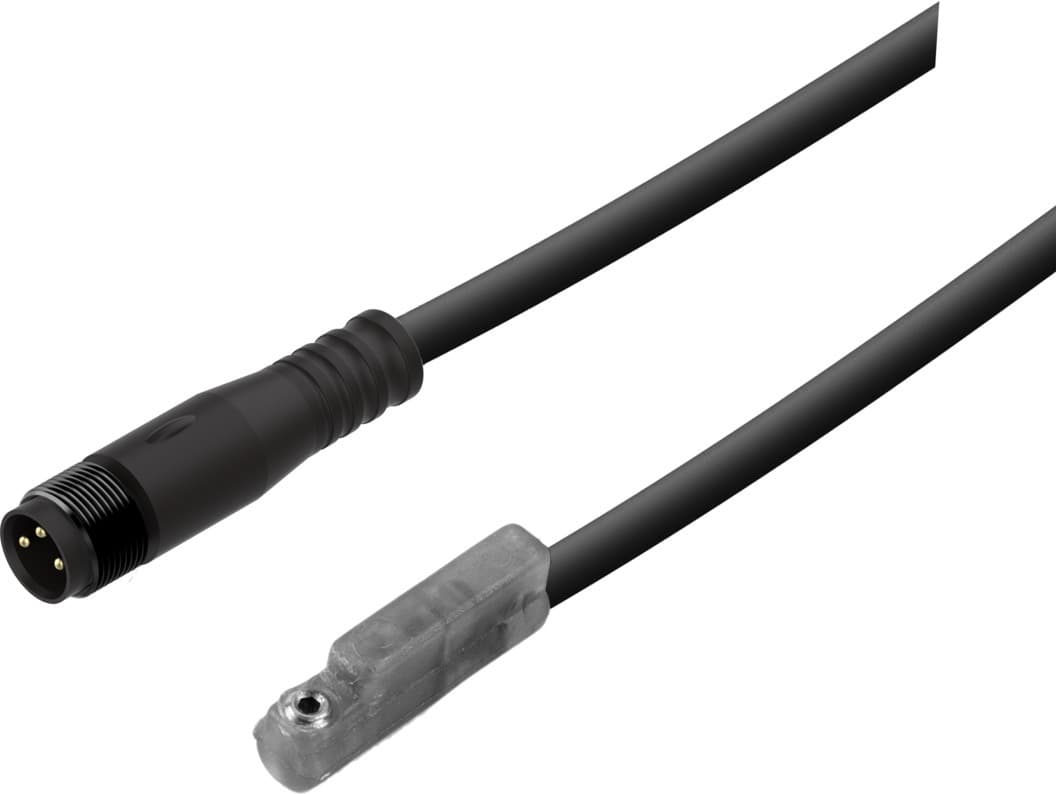

sdbf-fas-1l-nu-k-0.5-n-m8
Selling Points
- 1High Accuracy: Magnetoresistive technology ensures precise position measurement.
- 2Wide Temperature Range: Operates from -4°F to 176°F, suitable for various environments.
- 3RoHS Compliant: Contains paint-wetting impairment substances, conforming to RoHS regulations.
- 4Flexible Installation: Can be inserted into round slots or mounted securely with screws.
- 5LED Indication: Switching status indicated by an LED light for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -20°C 80°C | Switching output | NPN |
Switching element function | N/O contact | On time | 0.004ms |
Max. output current | 200mA | Max. switching capacity DC | 4.8W |
Voltage drop | 1V | Short-circuit protection | yes |
DC operating voltage range | 6V 24V | Reverse polarity protection | yes |
Electrical connection 1, connection type | Cable with socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Color cable sheath | Black | Material of cable sheath | PVC |
Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Mounting position | Any |
Housing colour | Transparent | Switching status indication | LED |
Ambient temperature with flexible cable installation | -20°C 80°C | Degree of protection | NEMA 6 |
LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 8106574 |
Specifications may be subject to change without notice
