Product Model

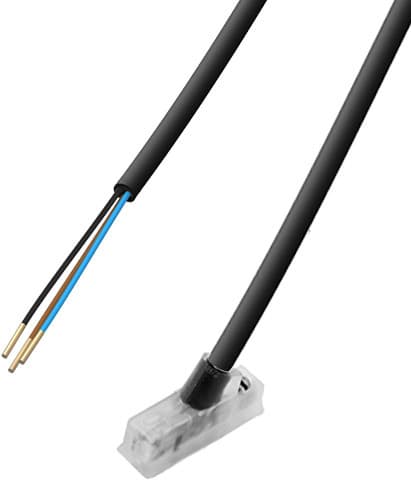

sdbf-fbs-1l-nu-k-9-n-le
Selling Points
- 1Magneto-Resistive Measuring Principle: Accurate detection of position with high sensitivity.
- 2LED Switching Status Indication: Easy visual confirmation of sensor status.
- 3Robust Design: Durable construction for long-lasting performance in harsh environments.
- 4Wide Ambient Temperature Range: Operates effectively from -20 °C to 80 °C.
- 5NEMA 6 Degree of Protection: Ensures reliable operation in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for dovetail slot | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -20°C 80°C | Switching output | NPN |
Switching element function | N/O contact | On time | 0.004ms |
Max. output current | 200mA | Max. switching capacity DC | 4.8W |
Voltage drop | 1V | Short-circuit protection | yes |
DC operating voltage range | 5V 28V | Reverse polarity protection | yes |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | 60° |
Color cable sheath | Black | Material of cable sheath | PVC |
Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Mounting position | Any |
Housing colour | Transparent | Switching status indication | LED |
Ambient temperature with flexible cable installation | -20°C 80°C | Degree of protection | NEMA 6 |
LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 8106577 |
Specifications may be subject to change without notice
