Product Model

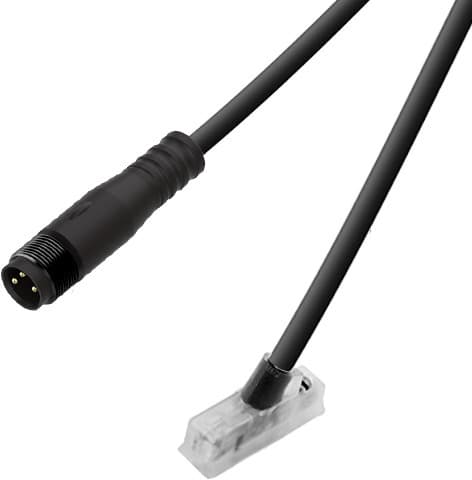

sdbf-fbs-1l-pu-k-0.5-n-m8
Selling Points
- 1High Accuracy: Precise magneto-resistive technology ensures reliable position sensing.
- 2Versatile Mounting: Designed for dovetail slots, with optional screw-clamped mounting.
- 3Wide Operating Range: Operates within -20°C to 80°C ambient temperature.
- 4Robust Construction: RoHS-compliant, with a durable PVC cable sheath.
- 5Easy Installation: Features a 60° cable outlet and LED switching status indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for dovetail slot | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -20°C 80°C | Switching output | PNP |
Switching element function | N/O contact | On time | 0.004ms |
Max. output current | 200mA | Max. switching capacity DC | 4.8W |
Voltage drop | 1V | Short-circuit protection | yes |
DC operating voltage range | 5V 28V | Reverse polarity protection | yes |
Electrical connection 1, connection type | Cable with socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | 60° |
Color cable sheath | Black | Material of cable sheath | PVC |
Type of mounting | Screwed tightly Can be inserted in slot lengthwise | Mounting position | Any |
Housing colour | Transparent | Switching status indication | LED |
Ambient temperature with flexible cable installation | -20°C 80°C | Degree of protection | NEMA 6 |
LABS (PWIS) conformity | VDMA24364 zone III | Manufacturer ID | 8106576 |
Specifications may be subject to change without notice
