Product Model

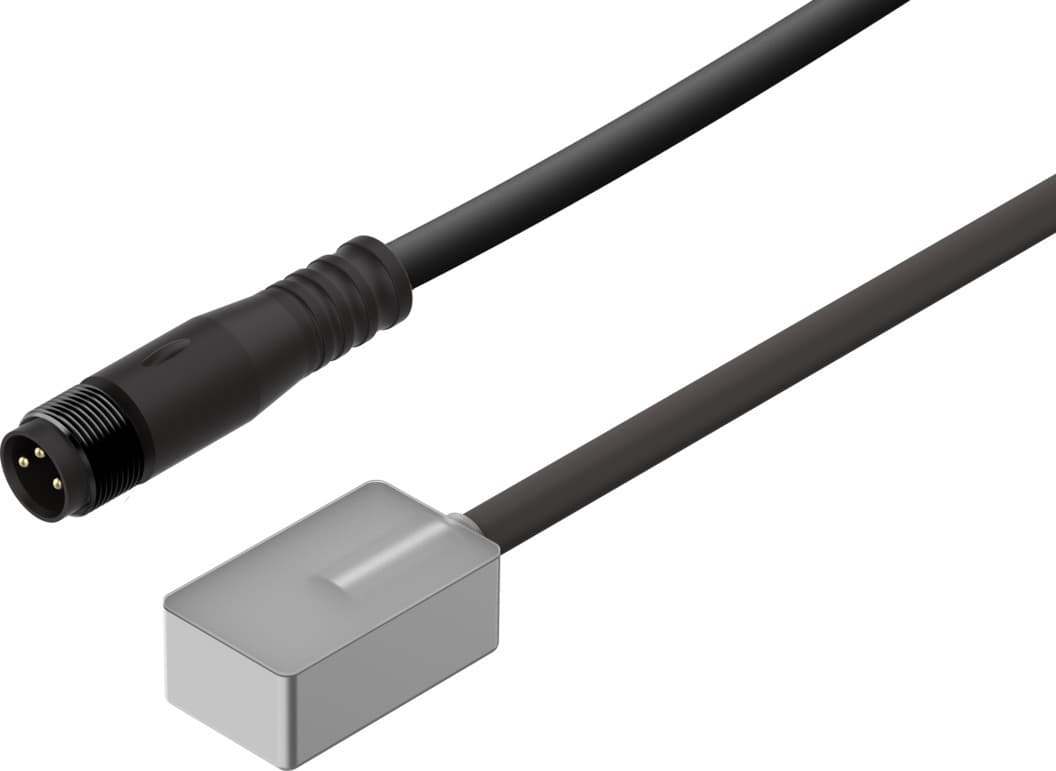

sdbf-fcs-1l-nu-k-n-m8
Selling Points
- 1Fast Switch-On Time: 4 µs switch-on time ensures quick response in industrial applications.
- 2High Accuracy: Magneto-resistive measuring principle provides precise position detection.
- 3Robust Design: IP67 and NEMA 4 protection ensure durability in harsh environments.
- 4Versatile Connectivity: M8x1 A-coded connector for easy integration into various systems.
- 5Wide Operating Range: Operates from -4 °F to 176 °F, suitable for diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -20°C 80°C | Switching output | NPN |
Switching element function | N/O contact | On time | 0.004ms |
Max. output current | 500mA | Max. switching capacity DC | 12W |
Voltage drop | 1V | Short-circuit protection | yes |
DC operating voltage range | 6V 24V | Reverse polarity protection | yes |
Electrical connection 1, connection type | Cable with socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Color cable sheath | Gray | Material of cable sheath | PVC |
Type of mounting | With mounting kit | Mounting position | Any |
Housing colour | Transparent | Housing material | PA |
Switching status indication | LED | Ambient temperature with flexible cable installation | -20°C 80°C |
Degree of protection | IP67 NEMA 4 | LABS (PWIS) conformity | VDMA24364 zone III |
Manufacturer ID | 8117066 |
Specifications may be subject to change without notice
