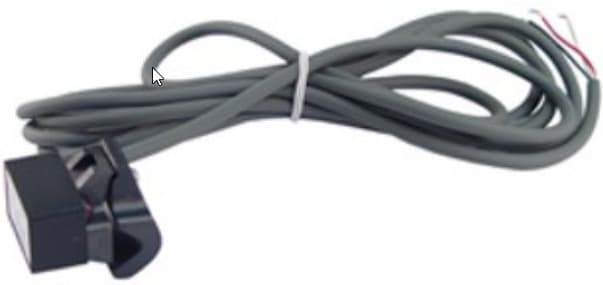

Festo SDBF-FDS-1L-NU-K-9-N-LE Proximity Sensor - High Accuracy and Reliability

Selling Points

1The SDBF-FDS-1L-NU-K-9-N-LE proximity sensor uses a magneto-resistive principle for precise position measurement, ensuring high accuracy and reliability in industrial applications.
2This sensor operates effectively within a broad ambient temperature range of -20 °C to 80 °C, making it suitable for various industrial environments.
3The sensor features a robust block design and IP67 protection, ensuring it can withstand harsh conditions and maintain its performance.
4The SDBF-FDS-1L-NU-K-9-N-LE includes an LED for switching status indication, providing clear visual feedback on its operational status.
5The sensor is RoHS-compliant and meets the standards of VDMA24364 zone III, ensuring it adheres to environmental and safety regulations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Design	Block design	Note on materials	RoHS-compliant
Measured variable	Position	Measuring principle	Magneto-resistive
Ambient temperature	-20°C 80°C	Ambient temperature Fahrenheit	-4°F 176°F
Switching output	NPN	Switching element function	N/O contact
On time	0.0015ms	Switch-off time	5.0E-4ms
Max. output current	1000mA	Max. switching capacity DC	24W
Voltage drop	0.5V	Short-circuit protection	no
DC operating voltage range	6V 24V	Reverse polarity protection	no
Electrical connection 1, connection type	Cable	Electrical connection 1, connection technology	Open end
Electrical connection 1, number of pins/wires	3	Connection outlet orientation	Transverse
Color cable sheath	Gray	Material of cable sheath	PVC
Type of mounting	Clamped	Mounting position	Any
Housing colour	Black	Housing material	PA
Switching status indication	LED	Ambient temperature with flexible cable installation	-20°C 80°C
Degree of protection	IP67 NEMA 4	LABS (PWIS) conformity	VDMA24364 zone III
Manufacturer ID	8161168

Specifications may be subject to change without notice
