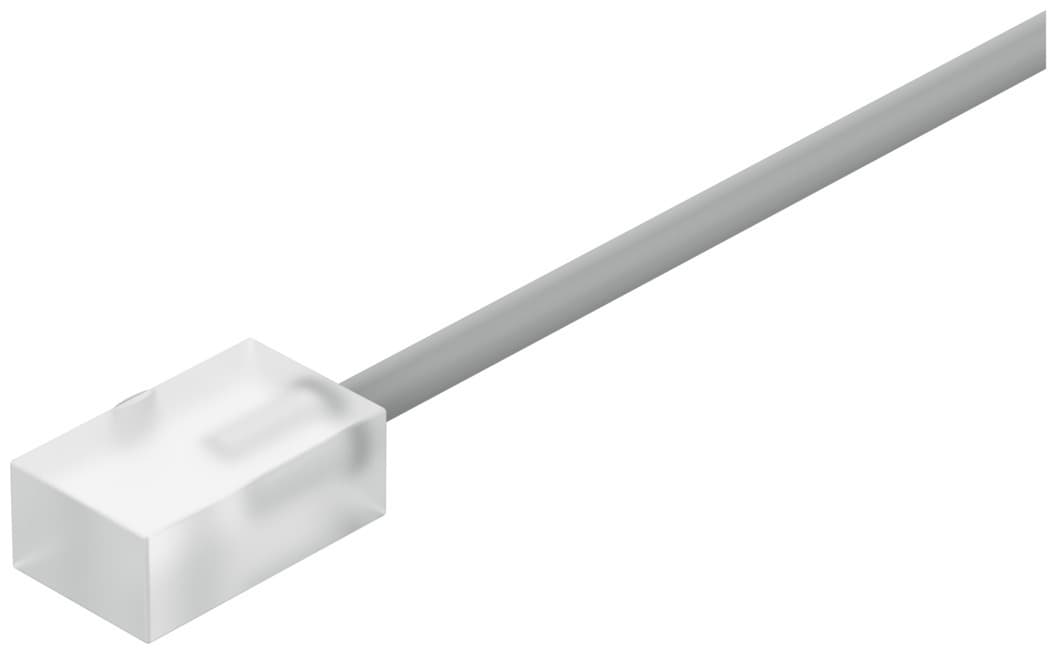

Festo Proximity Switch SDBF-FES-1L-PU-K-9-N-LE

Selling Points

1The SDBF-FES-1L-PU-K-9-N-LE proximity switch offers a switch-on time of 4 µs, ensuring quick and precise detection in industrial applications.
2Built with a durable design, this switch is RoHS-compliant and features a transparent housing with an IP67 degree of protection, making it suitable for harsh environments.
3The switch supports PNP output and has a maximum output current of 500 mA, allowing for reliable operation in various industrial settings.
4The SDBF-FES-1L-PU-K-9-N-LE can be easily integrated into mounting kits, providing a convenient installation process for users.
5Equipped with reverse polarity protection and a short circuit current rating, this switch ensures safe and reliable operation in industrial automation systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Design	Block design	Note on materials	RoHS-compliant
Measured variable	Position	Measuring principle	Magneto-resistive
Ambient temperature	-20°C 80°C	Switching output	PNP
Switching element function	N/O contact	On time	0.004ms
Max. output current	500mA	Max. switching capacity DC	12W
Voltage drop	1V	Short-circuit protection	yes
DC operating voltage range	6V 24V	Reverse polarity protection	yes
Electrical connection 1, connection type	Cable	Electrical connection 1, connection technology	Open end
Electrical connection 1, number of pins/wires	3	Connection outlet orientation	Longitudinal
Color cable sheath	Gray	Material of cable sheath	PVC
Type of mounting	With mounting kit	Mounting position	Any
Housing colour	Transparent	Housing material	PA
Switching status indication	LED	Ambient temperature with flexible cable installation	-20°C 80°C
Degree of protection	IP67 NEMA 4	LABS (PWIS) conformity	VDMA24364 zone III
Manufacturer ID	8182046

Specifications may be subject to change without notice
