Product Model

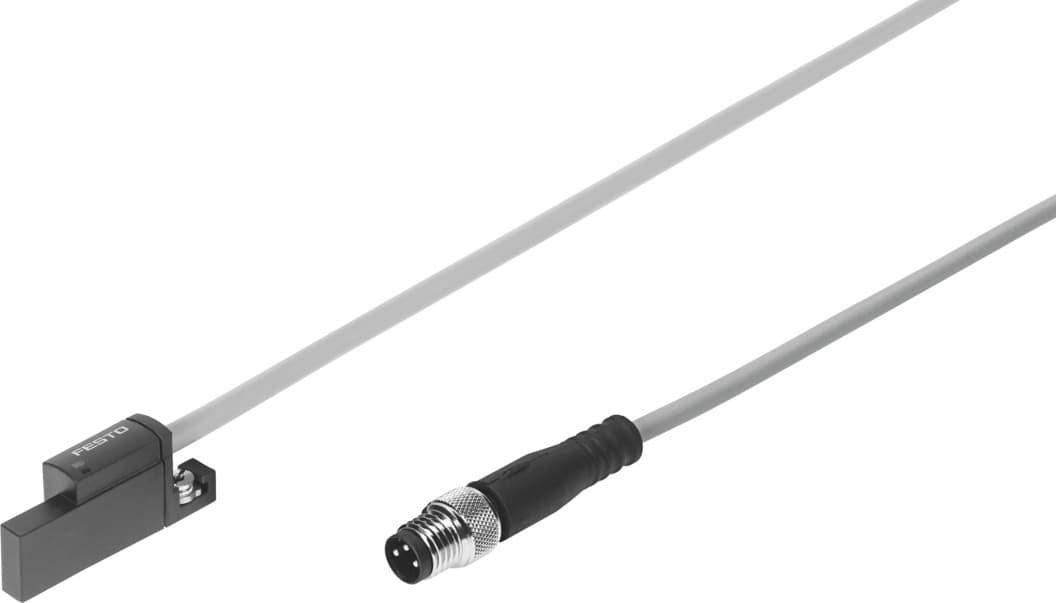

sdbt-bsw-1l-nu-w-0.3-n-m12
Selling Points
- 1UV-resistant and Oil-resistant Design: The SDBT-BSW-1L-NU-W-0.3-N-M12 proximity sensor is engineered to withstand harsh environments, ensuring reliable performance in UV and oil-exposed conditions.
- 2Welding Field Immunity: This sensor is resistant to welding spatter and fields, making it an excellent choice for applications in welding environments where interference is common.
- 3High Accuracy and Repeatability: With a repetition accuracy of 0.2 mm and a max movement speed of 1 m/s, this sensor provides precise positioning measurements.
- 4Robust Construction: Built with high-alloy stainless steel and epoxy resin, this sensor offers excellent durability and resistance to extreme temperatures (-25°C to 85°C).
- 5Comprehensive Certifications: The SDBT-BSW-1L-NU-W-0.3-N-M12 is certified to EU EMC and RoHS directives, ensuring compliance with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991150 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | UV-resistant Oil-resistant Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -25°C 85°C |
Max. travel speed | 1m/s | Repetition accuracy | 0.2mm |
Switching output | NPN | Switching characteristics during the welding process | Output signal freezes |
Switching element function | N/O contact | On time | 15ms |
Switch-off time | 25ms | Max. switching frequency | 25Hz |
Max. output current | 100mA | Max. output current in mounting kits | 100mA |
Max. switching capacity DC | 2.8W | Max. switching capacity DC in mounting kits | 2.8W |
Voltage drop | 1.5V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Minimum load current | 0mA | Residual current | 0.14mA |
Short-circuit protection | yes | Overload protection | Available |
Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable with plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00995573 | Connection outlet orientation | Longitudinal |
Material of pin contacts | Brass, nickel-plated and gold-plated | Material of plug housing | TPE-U(PU) |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request | Cable length | 0.3m |
Cable characteristic | Resistant to welding spatter | Color cable sheath | Gray |
Material of cable sheath | PVC, cross-linked by irradiation | Insulating sheath material | PVC |
Type of mounting | Screwed tightly Can be inserted in slot from above | Max. tightening torque | 0.6Nm |
Mounting position | Any | Product weight | 23.3g |
Housing colour | Black | Housing material | Epoxy resin PA-reinforced High-alloy stainless steel |
Material of union nut | Brass, nickel-plated | Switching status indication | LED yellow |
Function reserve indication | LED orange | Ambient temperature with flexible cable installation | -5°C 80°C |
Degree of protection | IP65 IP68 | Resistance to interference from magnetic fields | Insensitive to AC magnetic fields (50...60 Hz) < 200 mT Insensitive to MFDC magnetic fields (1000?Hz) < 200 mT Due to design, insensitive to permanent magnetic fields < Bon |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 2427615 |
Specifications may be subject to change without notice
