Product Model

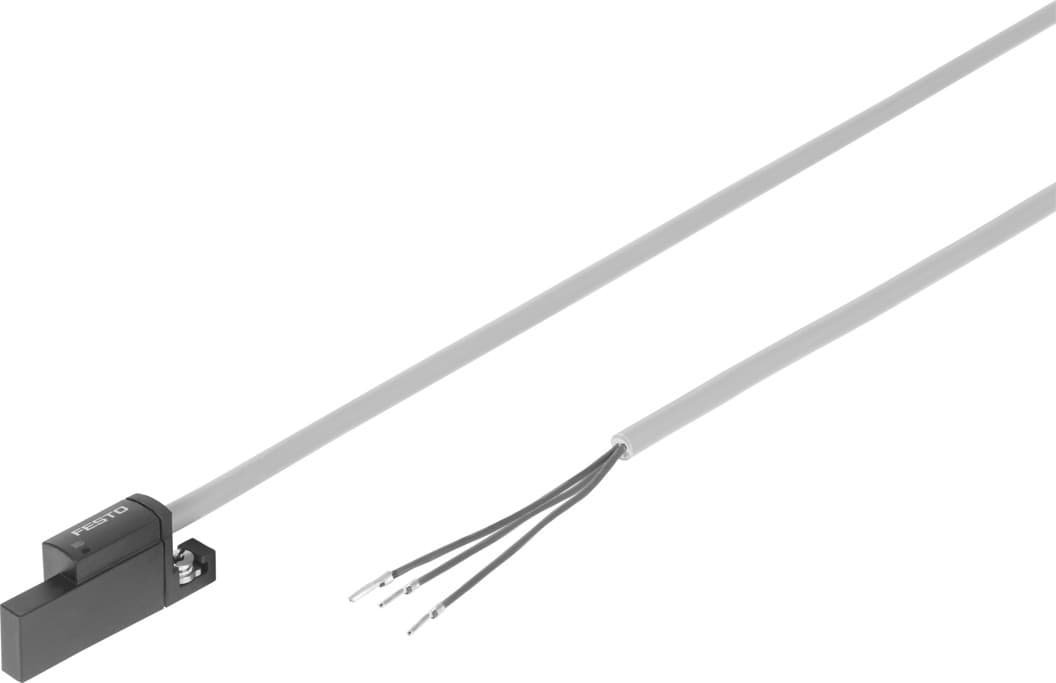

sdbt-bsw-1l-pu-w-5-n-le
Selling Points
- 1The Festo SDBT-BSW-1L-PU-W-5-N-LE proximity sensor is designed for T-slot applications, ensuring precise positioning and reliable operation in various industrial settings.
- 2This sensor features robust special characteristics including oil resistance, UV resistance, and immunity to welding fields, making it suitable for harsh environments.
- 3With a magnetoresistive measurement principle, the SDBT-BSW-1L-PU-W-5-N-LE offers high accuracy in detecting position, ensuring consistent performance in industrial automation.
- 4The sensor is compliant with international standards such as EN 60947-5-2 and carries certifications like RCM mark, c UL us - Listed (OL), and CE mark for EU EMC directive, ensuring safety and reliability.
- 5The SDBT-BSW-1L-PU-W-5-N-LE features a durable housing made from high-alloyed stainless steel and PA reinforced epoxy resin, providing long-lasting performance in demanding industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991152 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | UV-resistant Oil-resistant Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -25°C 85°C |
Max. travel speed | 1m/s | Repetition accuracy | 0.2mm |
Switching output | PNP | Switching characteristics during the welding process | Output signal freezes |
Switching element function | N/O contact | On time | 15ms |
Switch-off time | 25ms | Max. switching frequency | 25Hz |
Max. output current | 100mA | Max. output current in mounting kits | 100mA |
Max. switching capacity DC | 2.8W | Max. switching capacity DC in mounting kits | 2.8W |
Voltage drop | 1.5V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Minimum load current | 0mA | Residual current | 0.005mA |
Short-circuit protection | yes | Overload protection | Available |
Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request | Cable length | 5m |
Cable characteristic | Resistant to welding spatter | Color cable sheath | Gray |
Material of cable sheath | PVC, cross-linked by irradiation | Insulating sheath material | PVC |
Wire ends | Cable end sleeve | Type of mounting | Screwed tightly Can be inserted in slot from above |
Max. tightening torque | 0.6Nm | Mounting position | Any |
Product weight | 119.4g | Housing colour | Black |
Housing material | Epoxy resin PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
Function reserve indication | LED orange | Ambient temperature with flexible cable installation | -5°C 80°C |
Degree of protection | IP65 IP68 | Resistance to interference from magnetic fields | Insensitive to AC magnetic fields (50...60 Hz) < 200 mT Insensitive to MFDC magnetic fields (1000?Hz) < 200 mT Due to design, insensitive to permanent magnetic fields < Bon |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 2427616 |
Specifications may be subject to change without notice
