Product Model

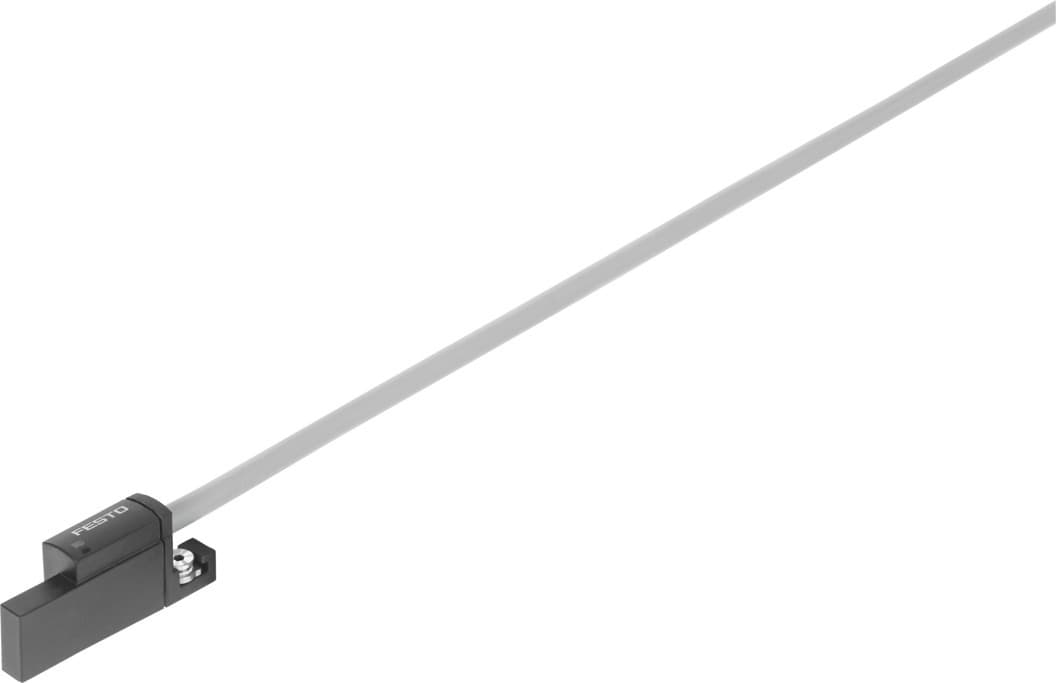

sdbt-bsw-1l-zu-w-5-n-le
Selling Points
- 1High Accuracy and Reliability: The Festo SDBT-BSW-1L-ZU-W-5-N-LE proximity sensor offers high accuracy with a repeatability of 0.2 mm, ensuring reliable performance in various industrial settings.
- 2T-Slot Design Compatibility: Specifically designed for T-slot applications, this sensor seamlessly integrates into your existing systems, enhancing efficiency and precision.
- 3Oil and UV Resistance: Equipped with oil-resistant and UV-resistant features, this sensor withstands harsh industrial environments, ensuring continuous operation without degradation.
- 4Wide Operating Temperature Range: Operating within an ambient temperature range of -25°C to 85°C, this sensor can handle diverse temperature conditions, making it versatile for various applications.
- 5Contactless 2-Wire Switching Output: Featuring a non-contact, 2-wire switching output, this sensor provides a clean and reliable signal, reducing the risk of electrical interference and ensuring smooth operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991623 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | UV-resistant Oil-resistant Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -25°C 85°C |
Max. travel speed | 1m/s | Repetition accuracy | 0.2mm |
Switching output | Non-contact, 2-wire | Switching characteristics during the welding process | Output signal freezes |
Switching element function | N/O contact | On time | 15ms |
Switch-off time | 25ms | Max. switching frequency | 25Hz |
Max. output current | 80mA | Max. output current in mounting kits | 80mA |
Max. switching capacity DC | 1.9W | Max. switching capacity DC in mounting kits | 1.9W |
Voltage drop | 6V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Minimum load current | 2.4mA | Residual current | 0.7mA |
Short-circuit protection | yes | Overload protection | Available |
Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 2 | Connection outlet orientation | Longitudinal |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request | Cable length | 5m |
Cable characteristic | Resistant to welding spatter | Color cable sheath | Gray |
Material of cable sheath | PVC, cross-linked by irradiation | Insulating sheath material | PVC |
Wire ends | Cable end sleeve | Type of mounting | Screwed tightly Can be inserted in slot from above |
Max. tightening torque | 0.6Nm | Mounting position | Any |
Product weight | 116.9g | Housing colour | Black |
Housing material | Epoxy resin PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
Function reserve indication | LED orange | Ambient temperature with flexible cable installation | -5°C 80°C |
Degree of protection | IP65 IP68 | Resistance to interference from magnetic fields | Insensitive to AC magnetic fields (50...60 Hz) < 160 mT Due to design, insensitive to permanent magnetic fields < Bon |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 2427617 |
Specifications may be subject to change without notice
